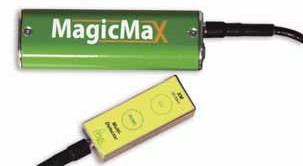

유방촬영장치용 멀티메터 Magicmax mam

Magicmax mam 은 유방촬영장치의 선량, 관전압, 반가층, 조사시간 (Dose, kVp, HVL, Exposure time)을 측정할 수 있는 멀티펑션메터(Multy function Meter)입니다.



Magicmax Universal과 유사한 디자인이지만 Magicmax Universal과는 다르게 디텍터가 고정되어 맘모 전용으로만 사용하는 제품입니다.
​

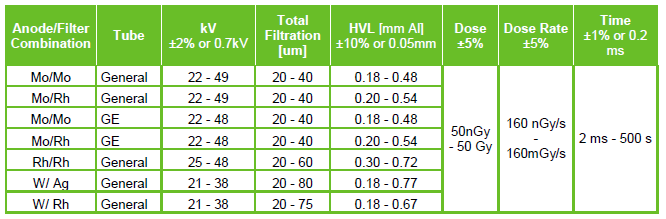

측정 범위는 아래와 같습니다.​

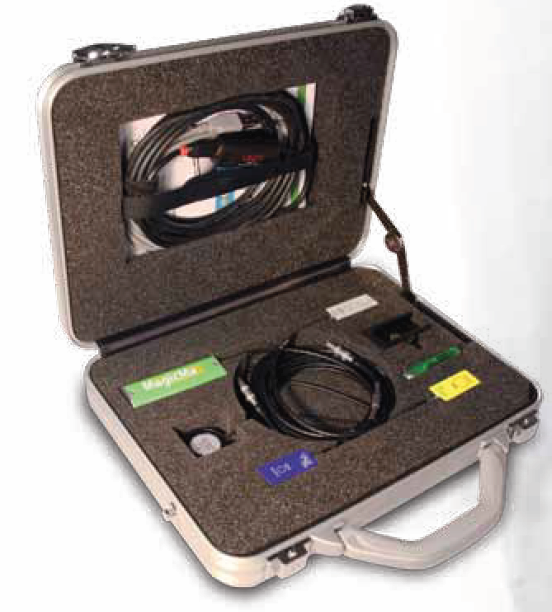

Magicmax mam은 알루미늄 케이스가 기본 제공됩니다.

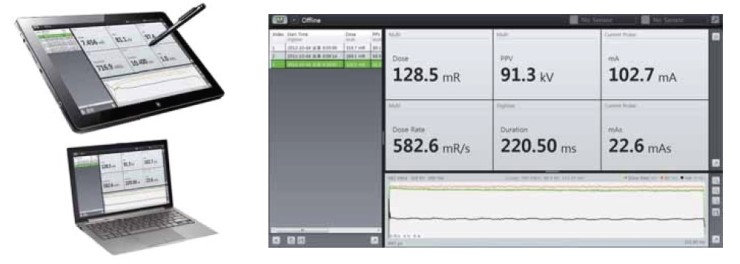

PC와 연결하여 소프트웨어를 통해 데이터가 관리됩니다.
Excel 등 다른 프로그램과도 호환 됩니다.

Uniquely Versatile
adaptable to any workflow QA need
​

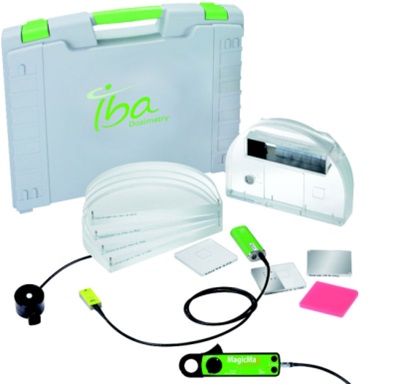

MagicMaX for all needs
• Fully customizable solution
to fit your needs, your workflow and your budget
• MagicMaX mAs-Clamp
Unique invasive and noninvasive measurements
integrated in one tool
• Flexible computer hardware
Use your own laptop or optional IBA mini notebook
​
Connect a second dosesensor to the MagicMaX for simultaneous entrance and exit dose measurement
Connect the MagicMaX mAsclamp for unique invasive and noninvasive measurements integrated in one tool
Connect the MM-LS MagicMaX Light Probe and verify lux measurements of viewing boxes, image intensifier output and x-ray
light fields within a measuring range of 0.1 lx - 10,000 lx​
​
​Uniquely Powerful
for conventional and digital applications
​Comprehensive!
MagicMaX is designed to combine workflow efficiency with comprehensive data recording and analysis, making the solution the
powerful tool from quick checks down to the most demanding expert level measurements.
​
​High quality measurements for QA reliability
• Simultaneous measurements of kVp, PPV, time, dose, dose rate, filtration and more...
• Highest 0.1ms time resolution for best data quality
• Measurement of HVL (half value layer)
• Most accurate pulse information
• Anode ripples detectable
