The Convenient Solution for the Determination of Diagnostic Reference Levels and Individual Patient Dose Values and QA Measurements​

➤ Complete Compliance with the following Standards:
     – IEC 60580 "Medical Electrical Equipment - Dose area product meters"
     – IEC 60601-1 "Medical Electrical Equipment - General requirements for basic safety and essential performance".
➤ Medical device, class IIb, according to "Council Directive 93/42/EEC of 14 June 1993 concerning Medical devices".
➤ The light transparency of more than 75 % and the extended kV range starting from 40 kV underline the outstanding features of the system.
➤ Easy installation due to cost effective and flexible cabling system based on tele communication standard cable (no high voltage cable is used).​
--------------------------------------------------------------------------------------------------------------------------

IBA Dosimetry DAP meter 면적선량계

Kermax plus TinO (Two in One)
​DAP-meter and real-time dosimeter (time resolution: 500 μs) dedicated to measure simultaneously DAP/DAP rate as well as
➤ Cumulative air kerma (real time dosimeter)
➤ Air kerma rate
➤ Exposure time (KermaX® plus TinO DDP)
➤ Suitable for measurements in pediatric applications due to its digital resolution of 0.01 μGym2
​
​Fully complies with:
➤ IEC 60601-2-43 "Medical Electrical Equipment - Particular requirements for the safety of X-ray equipment for
    interventional procedures"
➤ FDA 21CFR Part 1020 "Electronic Products; Performance standard for Diagnostic X-ray systems and their
    major components; Final Rule"
​

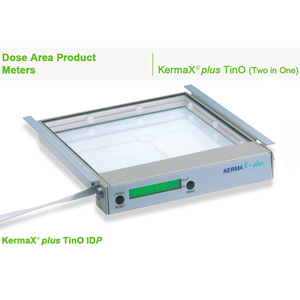

KermaX® plus TinO IDP 120-TinO-IDP  - 디스플레이 일체형 멀티 DAP meter
Rectangular, transparent ionization chamber with integrated electronics,a 10-digit internal background lighting LC-Display, interface optionally.
​
​Intended use
The KermaX ® plus TinO IDP is designed to be installed on diagnostic Xray units (attachment at the collimator) in order to measure the levels DOSE and Dose Area Product (DAP).
In the following chapter we will descibe the function and use of DOSEfunction and DAPfunction.
To switch between DOSE and DAPfunction press the Reset and Testbutton at the same time. This can be done before or after a measurement
Those who use the KermaX ® plus TinO IDP for the collection of data about dose surface product, carry the full and entire responsibility to critically evaluate the results of each measurement.
​​
Measurements

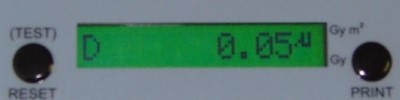

To switch between DOSE and DAPfunction press the Reset and Testbutton at the same time. This can be done before or after a measurement.
The first sign after the value (e.g. 0.000 m or 0.00 μ) indicates the DOSE or the DAP display mode.



Example DAP  0.05 μGym²



Example DOSE 1.350 mGy


Technical specifications
Reproducibility:                                              < 1% (at constant pressure and temperature)
Energy dependence:                                      better than ± 8 % related to 100 kV according to IEC 60580 from 40 to 150 kV.
Dose Area Product rate:                                   Minimum: 0.01 μGym 2 /s
                                                                         Maximum: 3 000.00 μGy m 2 /s
                                                                            It is forbidden to exceed the maximum Dose Area Product rate
Minimal dose resolution:                                0.01 μGym 2 (HS High Sensitive, as requested in IEC 60580 table 6)
Maximal measurable Dose Area Product:      99999999.99 μGym 2
Measuring time: Minimum:                              0.01 s
Attenuation equivalent:                                   < 0,5 mm Al
Linearity:                                                         better than ± 2 %
Active area:                                                    146 mm x 146 mm
Electrode spacing:                                         4 mm
Optical transparency:                                     ≥ 75 %
Voltage range:                                               15 – 24 V DC
Chamber voltage:                                          410 V ± 5 %
Cabling:                                                         Cost effective low voltage cable based on telecommunication standards or network  patch cable. 8 way FCC cable
Mechanical adaptation:                                 Can be mounted directly on the collimator by using the appropriate adaptor rails (distance 176 mm or 167 mm)
AC / DC Converter:                                          L: 95.9 mm / B: 55.5 mm / H: 30.5 mm
                                                                       Not suitable for installing in the collimator.
                                                                       Connection cable for KermaX ® plus: 650 mm long
                                                                       Connection cable (input voltage): 900 mm long
                                                                       Maximum current consumption: 1 A
                                                                       Input voltage: 20 - 50 V DC
                                                                                               12 - 35 V AC
                                                                      When using the AC / DC converter it is absolutely essential that international
                                                                       standards and national laws are observed.
Dose Rate:
         Minimum effective range of measurement:        6 mGy / min
         Maximum effective range of measurement:       30000 mGy / min
Dose:                                                                              1 mGy
​         Minimum effective range of measurement:
         Maximum effective range of measurement:        99999,95 mGy
Dose resolution:                                                             0,05 mGy
Dose rate linearity                                                          Better than ± 5 %
Combined measurement uncertainty                            ± 35 %
Input voltage range                                                       15 – 24 V DC
Warm up time                                                                10 min

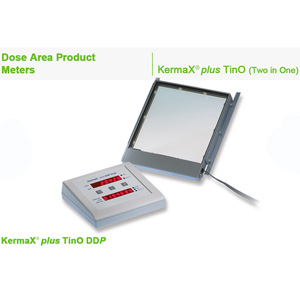

KermaX® plus TinO DDP 120-TinO-DDP  - 외부 디스플레이 멀티 DAP meter
Rectangular, transparent ionization chamber with integrated electronics and a "Dual Line Display" with two very bright
LED display lines indicating either DAP / DAP-rate and exposure time or dose/dose rate; printer interface.

Intended use
This manual is an integral part of the KermaX ® plus TinO DDP as a measuring device and should always be kept nearby. Observance of the manual is required for proper performance and correct operation of the KermaX ® plus TinO DDP. The system and its accessories must not be used for any other purpose than described in the accompanying documentation
(intended use). Violation will result in loss of warranty.



Basic Setup

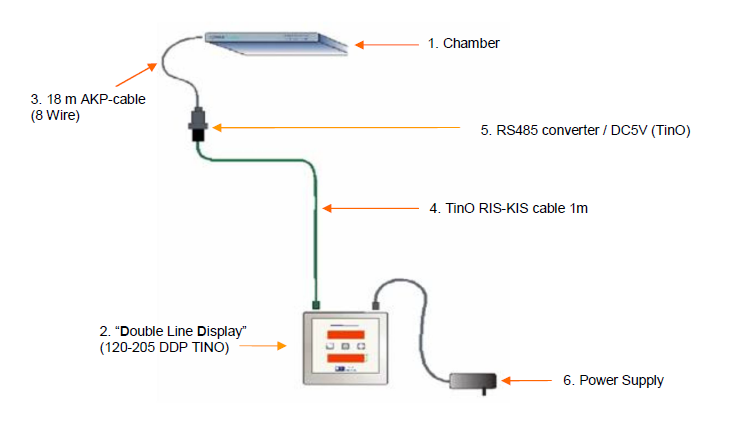

The KermaX ® plus TinO DDP measuring system consists of the following minimum (standard) components




ssembly & Installation Instructions for the KermaX ® plus TinO DDP
1. Slide the chamber into the lower accessory rails of the collimator. Ensure that even if the collimator shutter is fully open that no
    shadows from the chamber are visible in the light field.
2. Connect the chamber using the 18 m long connecting cable (AKP cable) with the RS485/232 TinO Converter (RJ45 Jack).
    Connect the 9 Pin RS232 connector (from the converter) with the RIS KIS TinO cable.
4. Connect the RJ45 Jack from the RIS KIS TinO cable to the RS232 socked.
5. Connect the RJ45 plug of the power supply with the socket CH1 or 2.
6. Connect the power supply to the mains

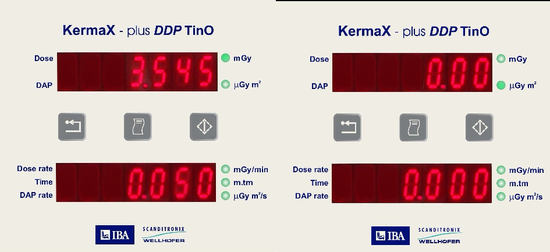

Main Functions of the “Double Line Display”
The KermaX ® plus TinO DDP is able to measure DOSE and Dose Area Product (DAP). In the following chapter we will descibe the function and use of DOSEfunction and DAPfunction





Technical specifications
Warm up time:                                  10 min
DoseRate:                                       6 mGy / min (minimum effective range of measurement)
                                                     30 000 mGy / min (maximum effective range of measurement)
Dose:                                             1 mGy (minimum effective range of measurement)
                                                     99 999.95 mGy (maximum effective range of measurement)
Dose resolution:                              0.5 mGy
DoseRate linearity:                           Better than ± 5 %
Type of Cable:                                8 way FCC cable
Input voltage range:                         15V DC – 24V DC
Combined measurement uncertainty:  ± 35 %

KermaX® plus

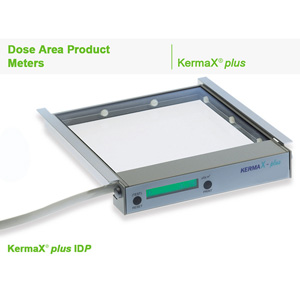

KermaX® plus IDP 120-IDP
Ideal solution for a quick and convenient retrofit installation dedicated to measure DAP and DAP rate for patient dose
monitoring.
➤ Rectangular, transparent ionization chamber with integrated electronics and a 10-digit internal background lighting
    LCD display; optional RS 232 / RS 485 for computer or printer interface
➤ Suitable for measurements in pediatric applications due to its digital resolution of 0.01 μGym2

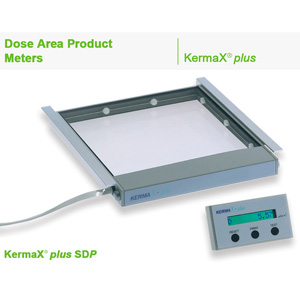

KermaX® plus SDP 120-SDP
Easy to install standard dosimeter dedicated to measure DAP and DAP rate for patient dose monitoring.
➤ Rectangular, transparent ionization chamber with integrated electronics and a separate 10-digit background lighting
    LCD Single Line Display providing an RS 232 PC / Printer interface
➤ Suitable for measurements in pediatric applications due to its digital resolution of 0.01 μGym2

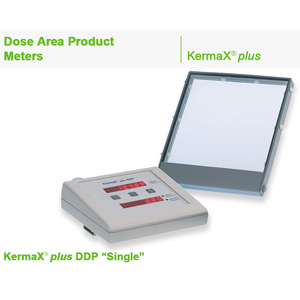

KermaX® plus DDP "Single" 120-DDP S
Duo-channel multifunctional dosimeter dedicated to measure DAP or DAP rate or exposure time in patient dose monitoring.
➤ One rectangular, transparent ionization chamber with integrated electronics and "Dual Line Display D" with two very
     bright LED display lines indicating either the DAP / DAP rate or exposure time
➤ The system provides two RS 232 interfaces (RIS/HIS and printer connection)
    The chambers can be delivered in the highly sensitive version on request.



KermaX® plus DDP "Duo" 120-DDP D
Duo-channel multifunctional dosimeter dedicated to measure DAP or DAP rate or exposure time in patient dose monitoring.
➤ Two rectangular, transparent ionization chambers with integrated electronics and "Dual Line Display D" with two very bright
    LED display lines indicating either the DAP / DAP rate or exposure time
➤ The system provides two RS 232 interfaces (RIS/HIS and printer connection)
    The chambers can be delivered in the highly sensitive version on request.



KermaX® plus C 120-C
Easy to install standard dosimeter dedicated to measure DAP and DAP rate for patient dose monitoring.
➤ Circular, nontransparent or transparent ionization chamber with separated electrometer box and a separate 10-digit
    background lighting LCD Single Line Display providing an RS 232 PC / Printer interface
➤ Standard resolution: 0.1 μGym2 (High sensible chamber type with resolution of 0.01 μGym2 for pediatric applications on request)
    Four standard sizes are available; customized solutions on request.
​
​Accessories



Printer Set “Star” 120-Star
Consisting of:
    ➤ Robust matrix-printer, type Star
    ➤ Printer cable
    ➤ Power supply
    ➤ 1 set of labels (1,000 pcs.)



Printer Set “Zebra S” 120-Zebra_S
Consisting of:
     ➤ Robust thermo-printer, type Zebra LP2824
     ➤ Printer cable
     ➤ Power supply
     ➤ 1 set of labels (1,680 pcs.) Adapters, Rails, and Cables
​
Adapters, Rails, and Cables
There is multiple optional adapters, rails and cables which can be used with all KermaX plus and KermaX® plus TinO Systems.
More detailed information on request.​
