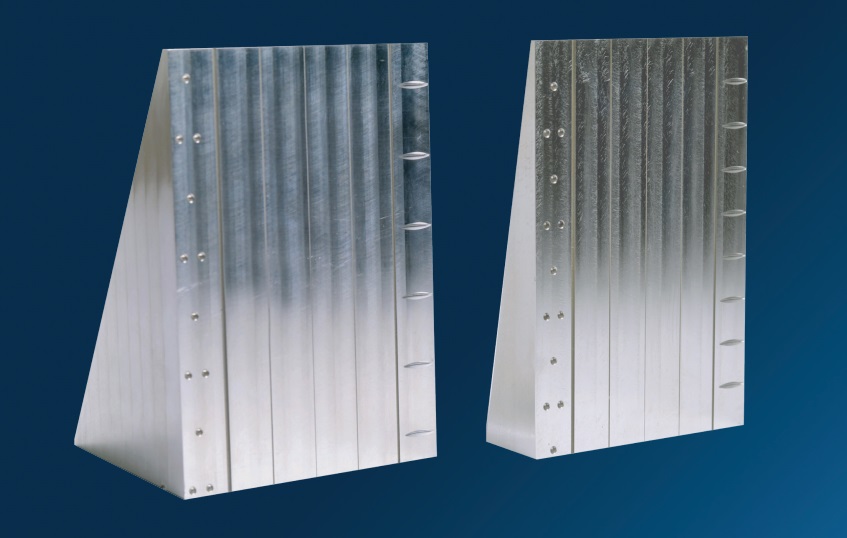

5-Groove Wedge and DR Phantom according to ASTM E2737

These 5-Groove Wedges are simple to set up and use. Universal test wedge according to ASTM E2737 - available in four versions. Selection is based on the most stringent material used in the application.

About ASTM E2737

The standard ASTM E2737 describes the evaluation of DDA systems for industrial radiology. It is intended to ensure that the evaluation of image quality, as far as this is influenced by the DDA system, meets the needs of users and their customers and enables process control and long term stability of the DDA systems.

These tests are to monitor the system performance for degradation and to identify when action needs to be taken if the system degrades by a certain level - i.e. influenced after repairs, hardware / software upgrades.

Simple to set-up and use universal test wedge according to ASTM E2737 - available in two versions. Selection shall base on the most stringent material used in the application.

• Heavy Metal, Stainless Steel (11 00170). Alloy: X2CrNiMo17-12-2 (V4A), 1.4404 (316L)
• Light Metal, Aluminum (11 00171). Alloy: Al Zn Mg Cu0.5, EN AW-7022 T651, 3.4345
• Heavy Metal, Inconel (11 00172). Alloy: Inconel 718, 2.4668
• Light Metal, Titanium (11 00173). Alloy: Ti Al6 V4, 3.7164, Grade 5
• All versions include a Manufacturer Declaration of Conformity and Dimensional Certification
