Pro-HVL
05-201 - standard set
05-202 - mammography set


Different sets of high (99.9%) and standard (99.5%) purity aluminium plates for testing Half Value Layer.


Technical data (can be modified to customer specifications):
• dimensions: 89 x 89 mm
• mammography set: 6 x 0.1 mm, aluminium purity 99.9%
• standard set: 5 x 1.0 mm, 2 x 0.5 mm, 4 x 0.1 mm, aluminium purity 99.5%
• other sizes upon request


Product features:
• complies with:
– IEC 61223-3-1, 2, 4
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration

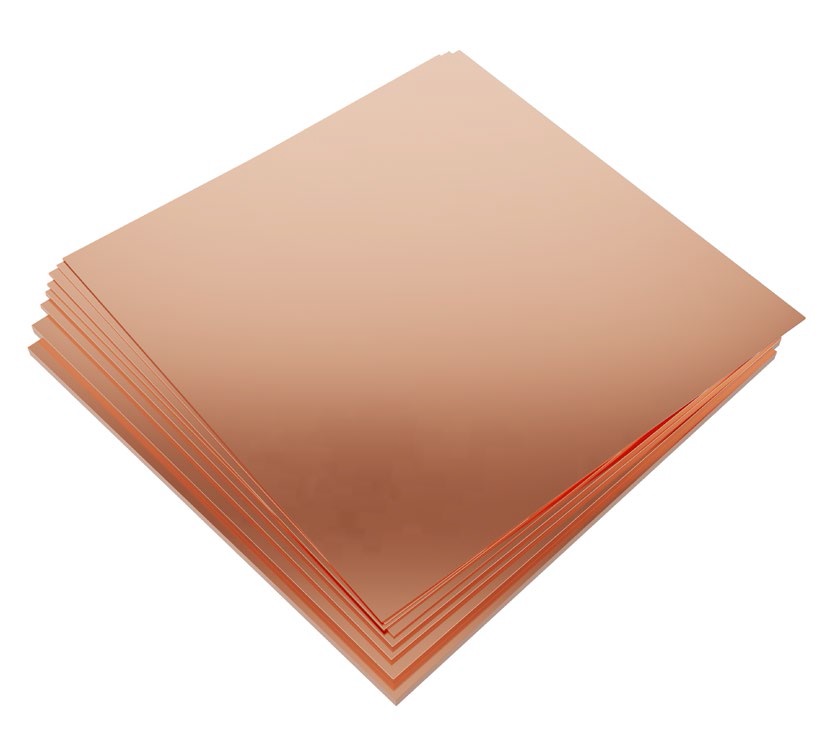

Pro-HVL Cu
05-203



Different sets of high purity copper plates for testing Half Value Layer.


Technical data (can be modified to customer specifications):
• dimensions: 100 x 100 mm
• standard set: 1x 2.0 mm, 2x 1.0 mm, 1x 0.5 mm, 1x 0.25 mm, 4x 0.1 mm
• other sizes upon request


Product features:
• complies with:
– IEC 61223-3-1, 2, 4
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration

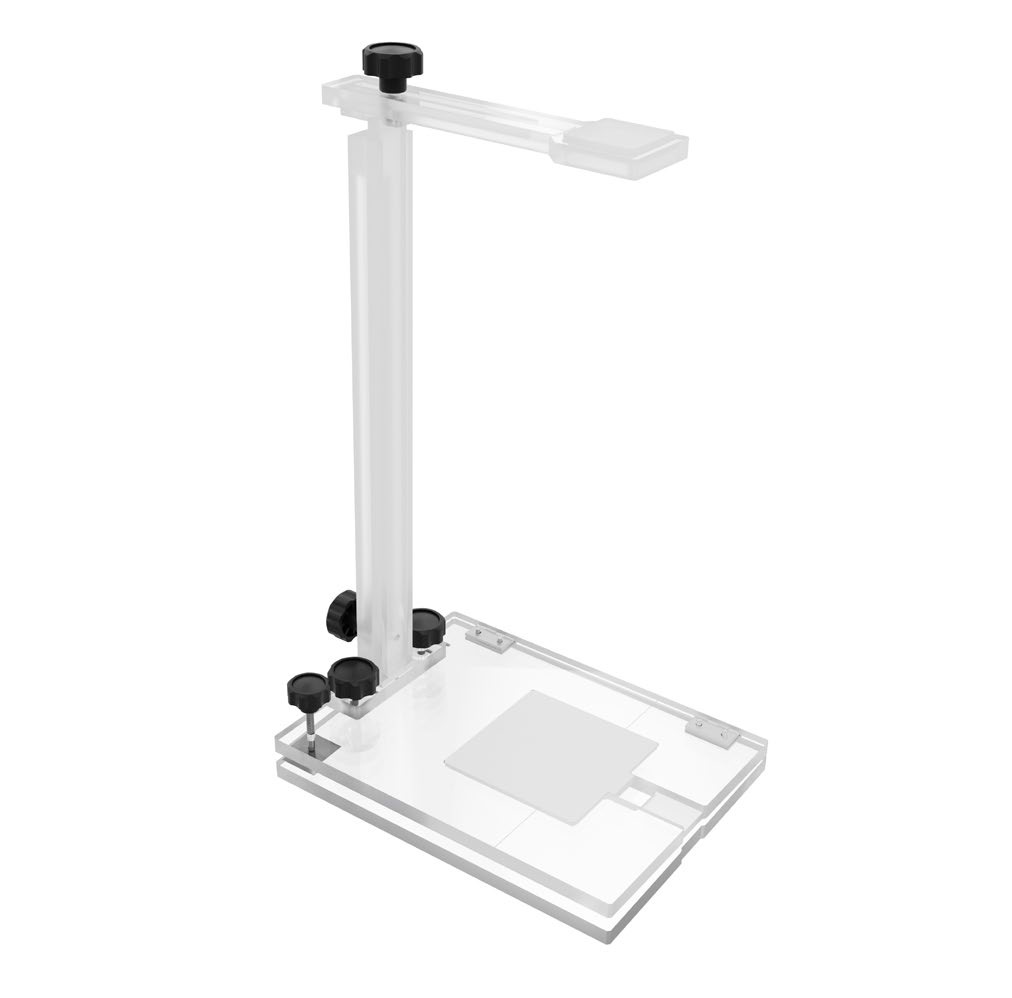

Pro-Stand
05-102 - R/F applications
05-103 - All applications including mammography



Adjustable stand, designed to make focal spot measuring procedures easy to perform, as well as ensuring accurate results.
It can also be used for the HVL measurements.


Technical data (can be modified to customer specifications):
• adjustable height from 350 mm to over 600 mm (wide range of magnification)
• adjustable horizontal position and vertical angle (optional - for testing mammography systems) of the table top
• place in the base for the Pro-Dent positioning stand for accurate positioning of dental RVG detectors
• optional add-ons for stand alignment verification – especially useful for measurements on mammography units
• optional wider arm for Pro-HVL filters
• optional heavy duty carrying case with two layer foam inly


Product features:
• complies with:
– IEC 60336:2005
– IEC 61223-3-1, 2, 4
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
