Rigel Multi-Flo

Infusion pump analyzer 약물주입기 분석기 Rigel Multi-Flo 입니다.

총 4개의 채널로 추가할 수 있어 여러대의 펌프를 테스트 할 수 있습니다.

시간의 경과에 따른 주입 양의 변화를 실시간 파형과 데이터로 저장하여 주기 때문에 infusion pump의 성능과 유효성을

쉽게 확인 할 수 있습니다.

소프트웨어를 통한 데이터 저장 및 분석이 가능합니다.

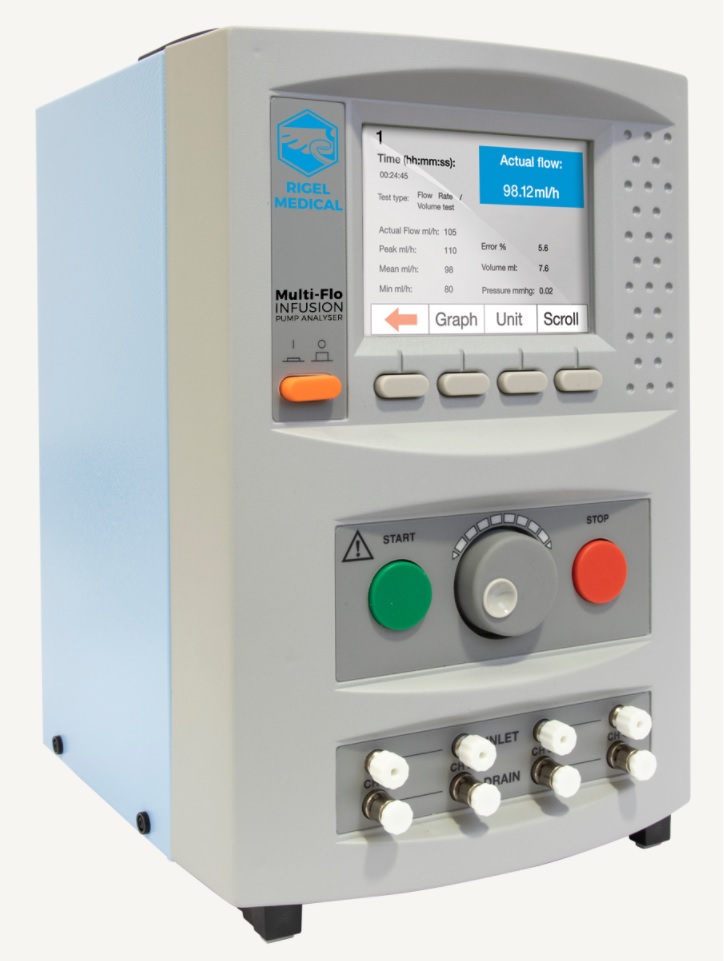

The Rigel Multi-Flo infusion pump analyzer offers ease of use, high accuracy readings and productivity improvements right from set-up.

With the choice of single or multi-channel configuration, the Multi-Flo can test up to four infusion devices simultaneously across

a range of 10μL up to 1500mL per hour, with all results being stored in the large internal memory.

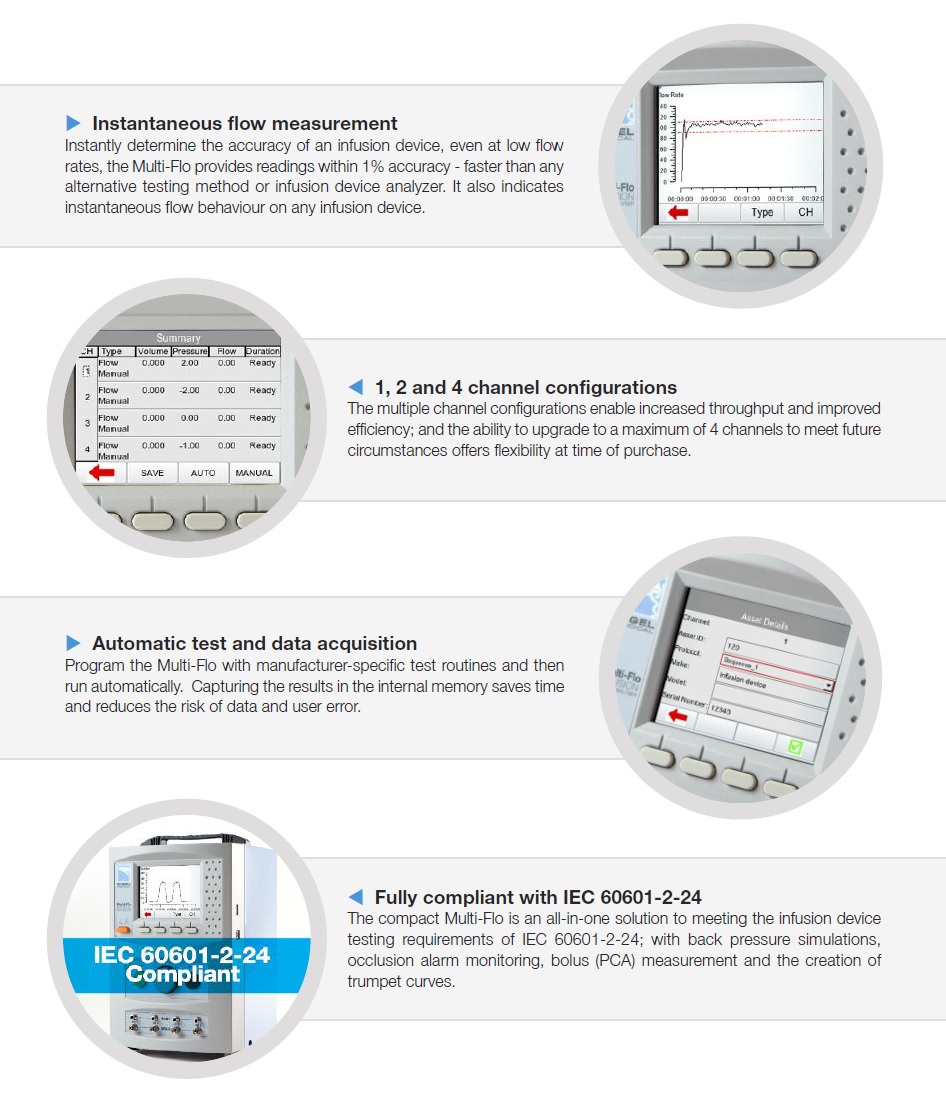

The Multi-Flo delivers unique accurate and instantaneous flow measurements even at low flow rates, enabling the user to test twice

as many infusion devices within the same time period as other volumetric based analyzers.

To help save even more time and to reduce the risk of human error, the Multi-Flo can also be programmed with manufacturer specific

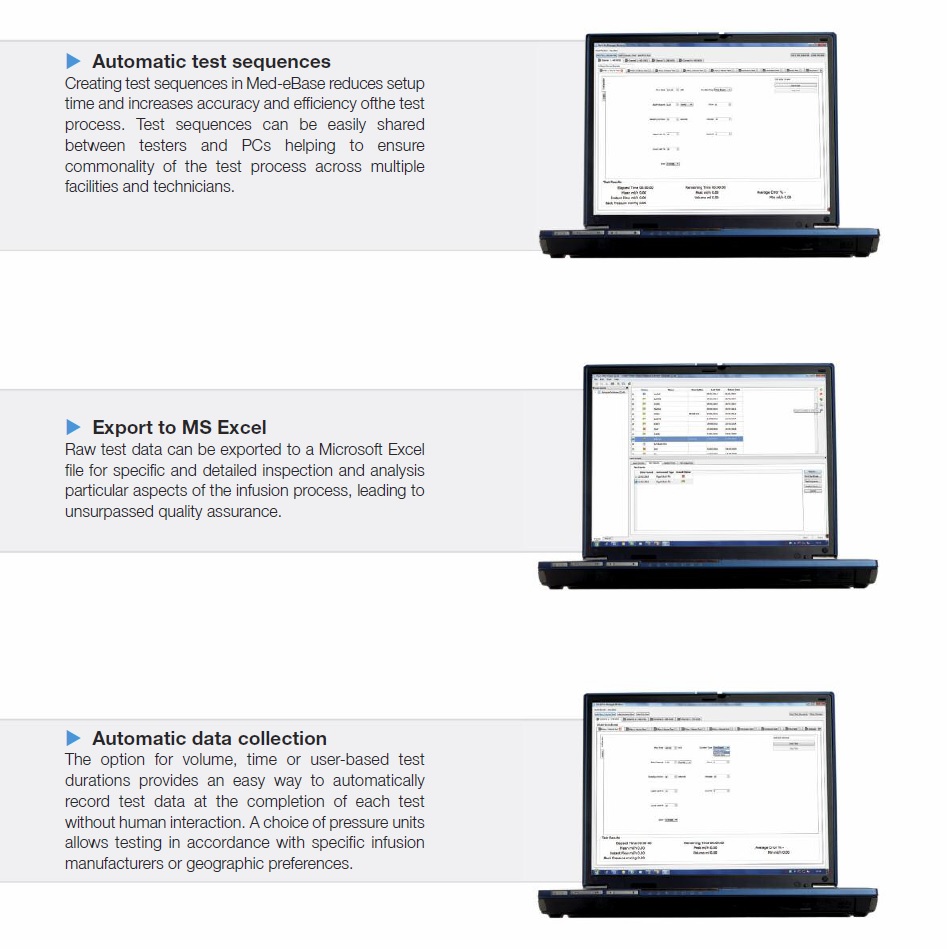

test routines which can then be automatically executed by the user on the device itself or controlled from a PC using the Med-eBase software solution.

To meet the requirements of IEC 60601-2-24, the Multi-Flo also provides accurate back pressure simulations, occlusion alarm monitoring

and bolus (PCA) measurements, and a large color graphics display presents the data in both numerical and graphical format.

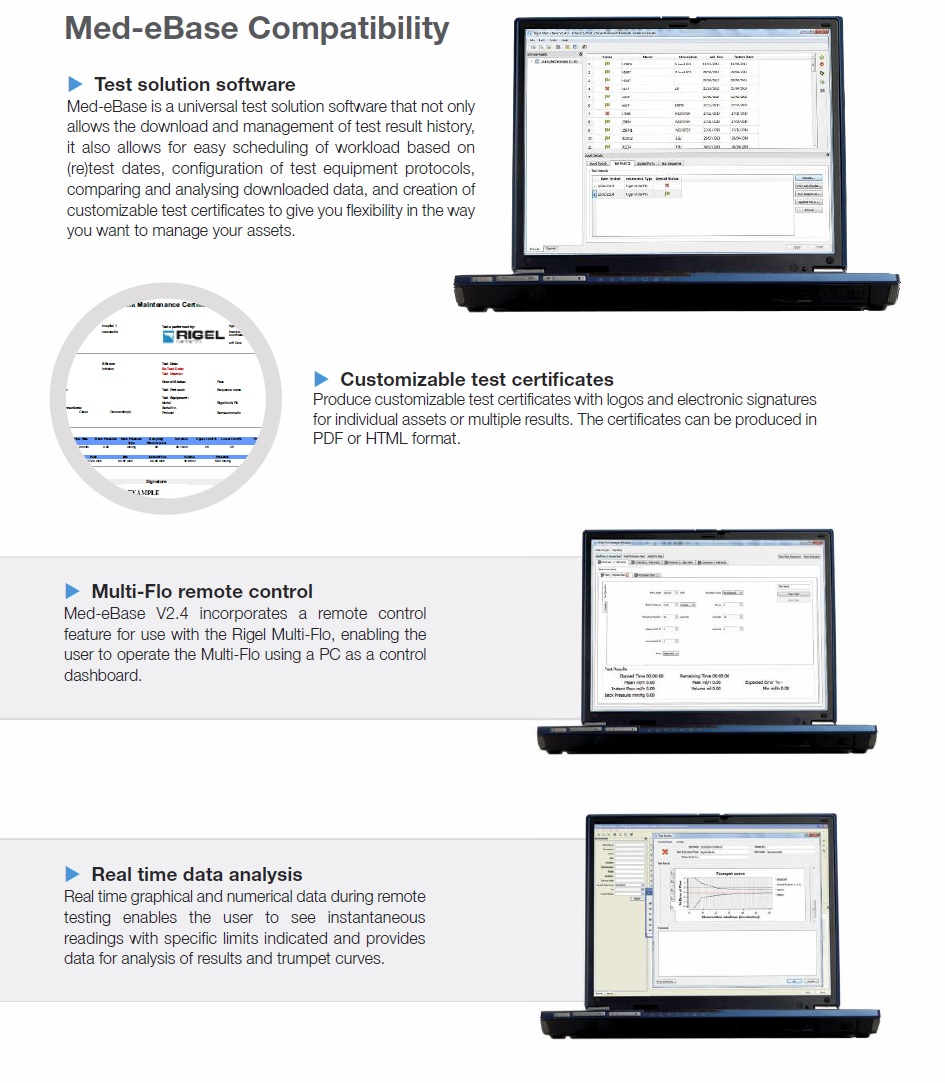

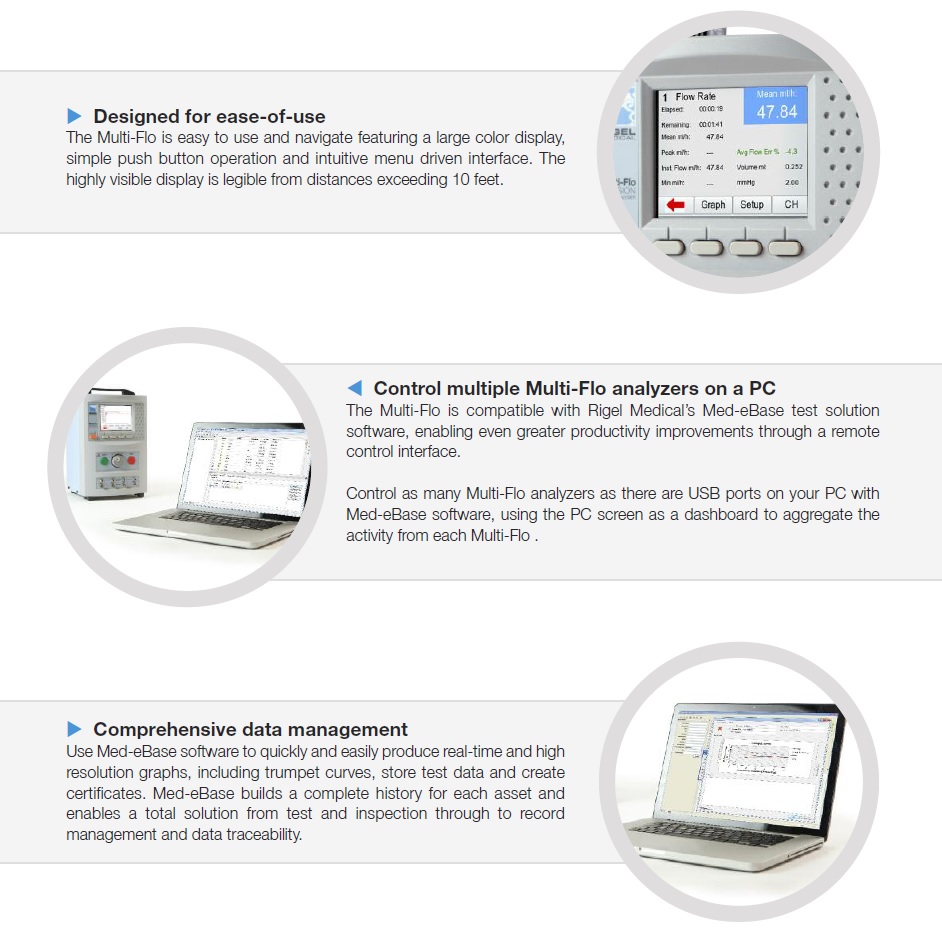

A remote (PC) control interface is available via Rigel’s test solution software, Med-eBase, allowing complete control of the Multi-Flo’s features

from the comfort of a PC. Requiring just a single USB connection per Multi-Flo, the total number of pumps under simultaneous test is limited

only by the number of USB ports available.

Perfect for high volume test environments.

Environmental Conditions

The Rigel Multi-Flo has been designed to perform tests and measurements in a dry environment.

Maximum barometric elevation for making measurements is 2000m.

Protective system IP40 according to IEC 60529.

Electromagnetic compatibility (EMC). Interference immunity and emitted interference conforming to IEC 61326-1.

Operating temperature range of 15–40°C / 59–104°F, without moisture condensation. The Multi-Flo can be stored at any temperature in the range 0–50°C / 32–122°F.

Disclaimer: While every care has been taken in ensuring the accuracy of the information in this document, Rigel Medical accepts no responsibility for errors or omissions.
