제목 Ultrasound Power Meters




초음파 자극기의 출력을 측정하기 위한 Ultrasound Watt Meter입니다.

Resolution이 1 mW ~ 200 mW까지 다양한 사양이 있습니다.

The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.

해상도에 따라 아래의 사양으로 나뉘어 집니다.

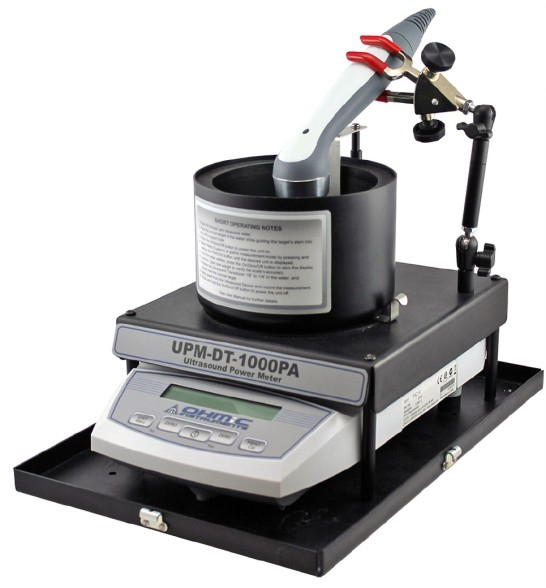

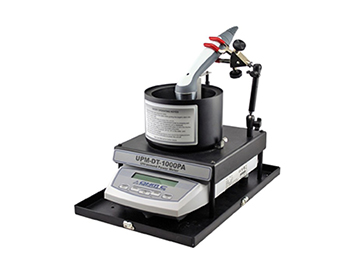

Features for the UPM-DT-1000PA:
• Fastest response time= less than 3 seconds
• Highest Resolution: 1mW OR .1 mg in grams mode
• Five point certification (NIST Traceable)
• Measurement Range: 0-30WATTS
• Frequency Range: .5TO 10MHZ
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 Interface

Features for the UPM-DT-1PA:
• Five point certification (NIST Traceable)
• High resolution: 2 OR 20mW (1.5 or 15 mW in grams mode)
• Measurement range: 0-30 watts
• Frequency range: .5-10 mhz
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 interface
• Equipped with carrying case

Features for the UPM-DT-10PA:
• Five point certification (NIST Traceable)
• High resolution: 2 or 20 mW (1.5 or 15 mW in grams mode)
• Measurement range: 0-30 watts
• Frequency range: .5 TO 10 mhz
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 interface
• Equipped with carrying case

Features for the USP50SP:
• Resolution: 50mW (150 mW in grams mode)
• Measurement range: 0 to 30 Watts
• Frequency range: .5 to 10mHZ
• Measures pulsed or continuous power
• Selectable readout in watts or grams
• Battery or line-powered
• Digital liquid crystal display
• Optional RS-232 or USB interface
• Automatic zeroing & stabilization
• Five point certification (NIST traceable)

Features for the UPM-DT-100SP:
• Performance tested by FDA and NIST
• Five point certification (NIST traceable)
• Resolution: 50 mW
• Measurement range: 0-30 watts
• Frequency range: .5-10 mhz
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Selectable readout in watts or grams
• Battery or line-powered
• Digital display and RS-232 interface
