엑스레이 인체 홀바디팬텀 Kyotokagaku PBU-50입니다.
실제 인체를 촬영할때 처럼 관절을 움직여 포지셔닝이 가능하며 Synthetic bones, pulmonary vessels, mediastinal space, liver, kidneys이 내장되어 있습니다.

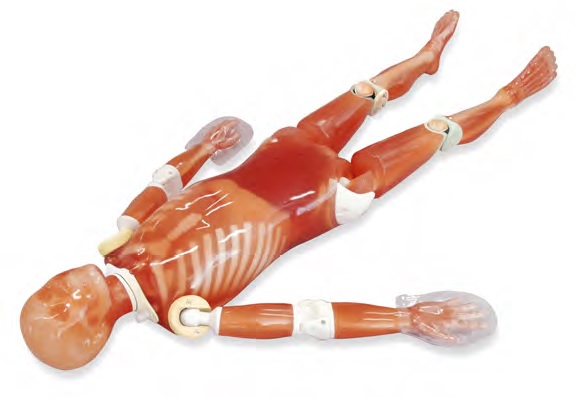

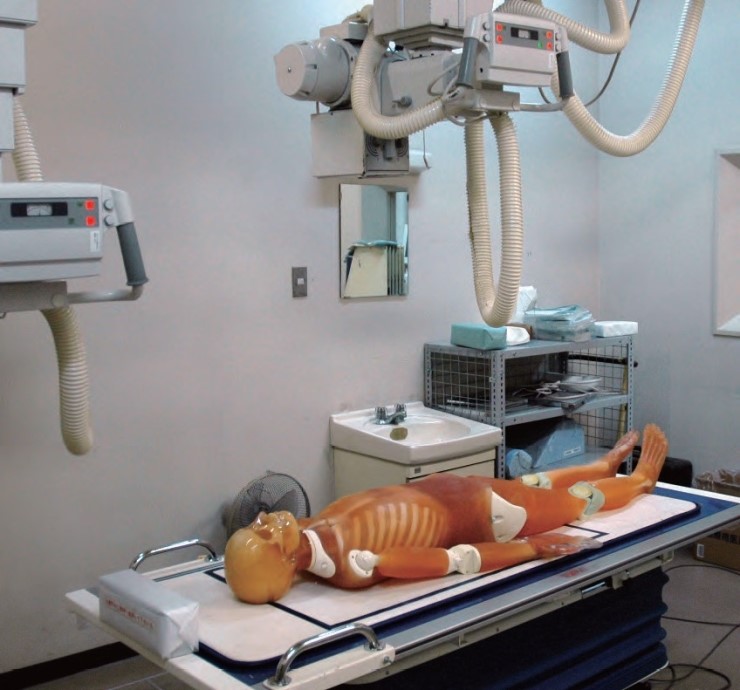

The Whole body phantom PBU-50 is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in KYOTOKAGAKU original soft tissue substitute. Movable joints allow basic positioning for plain X-ray and training/research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk). There are no metal parts or liquid structures.









Features

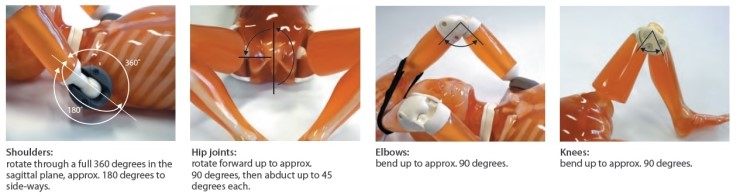

Patient positioning:
Right shoulder rotates side ways, abducting to a horizontal position.
Left shoulder rotates forward, up to a horizontal position.
Elbows bend inward to approx. 90 degrees.
Hip joints rotate forward up to 90 degrees, then rotate outward up to 45 degrees, respectively.
Knees bend to approx. 90 degrees.

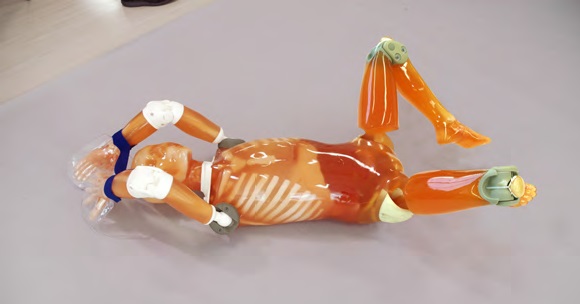

•The phantom can be held in the supine frog leg position.

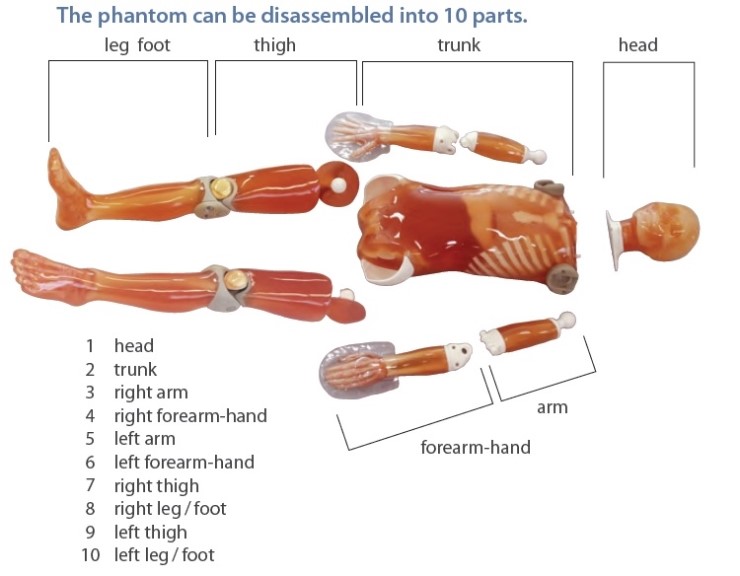

•The limbs and head are detachable at joints and neck for wider applications.
•The head supporter facilitates various head positions.
Anatomy:
•Life size synthetic skeleton
•Hands and feet with bone trabeculae
•Lungs with pulmonary vessels
•Mediastinal space
•Liver
•Kidneys
Original phantom materials:
•Radiology absorption and Hounsfield number approximate to human body.
Materials and features:
Soft tissue and organs: Urethane base resin (SZ-50)
Synthetic bones: Epoxy base resin
Joint attachments: Epoxy, urethane with carbon fiber
Screws: Polycarbonate



Specifications
Set includes:
•1 whole body phantom PBU-50
 (separable into 10 parts)
 Synthetic bones, pulmonary vessels, mediastinal space, liver, kidneys are embedded
•1 head supporter
•1 set of replacement joint connectors and screws (1 piece for each)
•1 flat head screwdriver

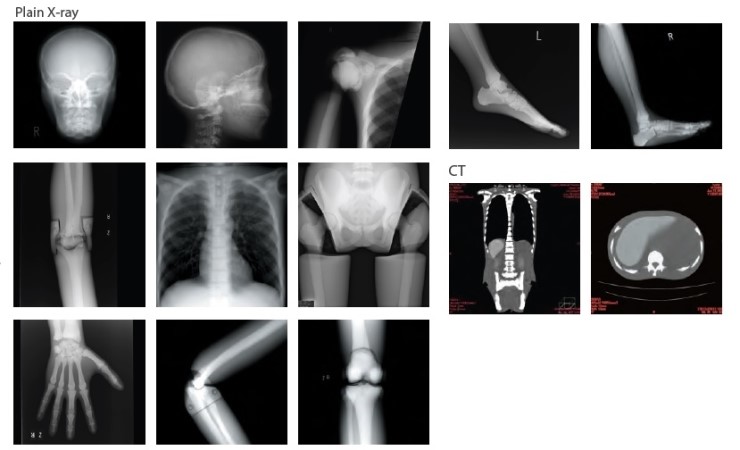

•1 set of sample X-ray data
Phantom size:
approx. 165 cm height
Phantom weight:
approx. 50 kg
Packing size:
approx. 85 x 60 x 44 cm
Packing weight:
approx. 80 kg
