Technical data (can be modified to customer specifications):

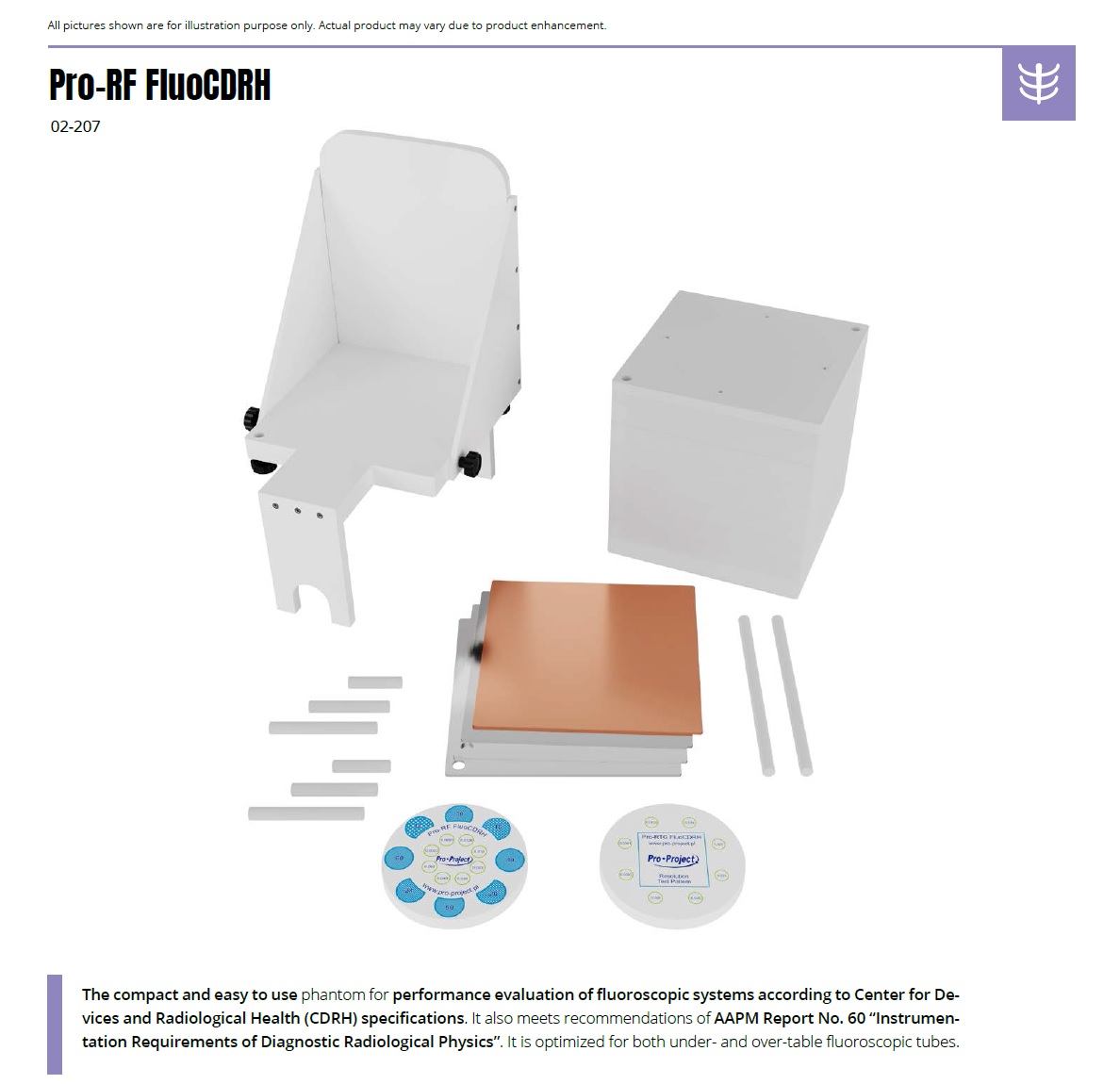

• set of acrylic plates making total thickness of 193 mm
• thanks to modular construction different total thicknesses can be easily set up
• size of acrylic plates is 177.8 x 177.8 mm
• 2x 2.3 mm aluminium filters can be screwed underneath the acrylic plates
• four beads embedded on the top plate can be used as orientation points for collimation setup
• phantom stands on two legs 100 mm above tabletop
• one leg is a probe holder

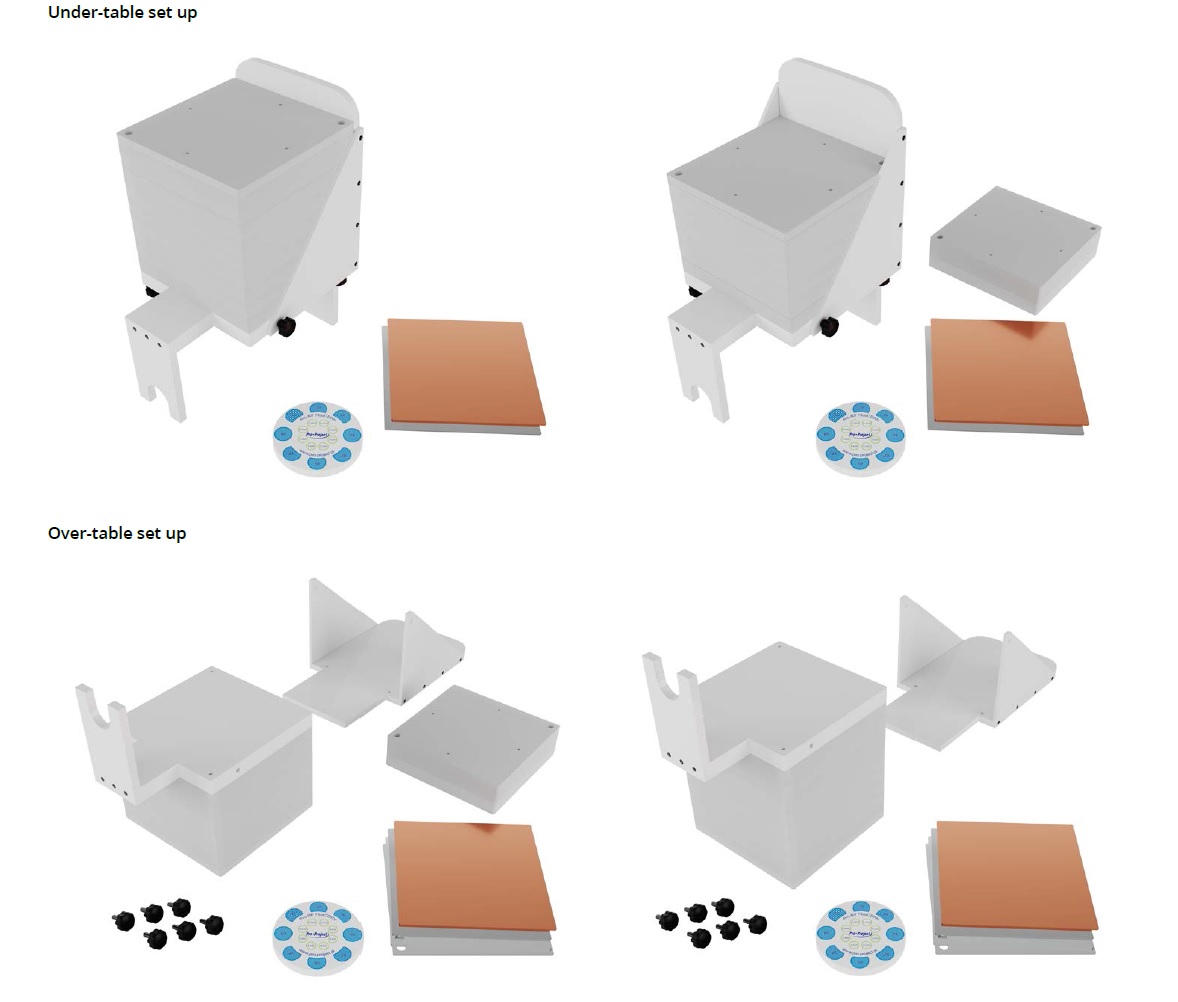

• back plate with a handle can be easily unscrewed for over-table measurements
• additional 1.6 mm copper filter simulates the presence of a 2 mm thick layer of barium sulfate, and can be used to measure the air kerma rate (free in air)
• 3.2 mm lead plate simulates maximum attenuation, and can be used to measure the maximum air kerma rate (free in air)
• two types of a fluoroscopic image quality test object containing 8 low-contrast holes in an aluminium disc and 8 high contrast meshes or
  a high contrast resolution lead plate (from 0.6 to 5.0 LP/mm).
• heavy duty carrying case


Product features:
• Complies with:
– Nationwide Evaluation of X-ray Trends (NEXT) Protocol for 2003 Survey of Fluoroscopic X-Ray Systems
– IEC 61223-3-1
– AAPM Report No. 60 “Instrumentation Requirements of Diagnostic Radiological Physics”
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
