Radiography

제목 IBA 엑스레이 테스트 팬텀 Primus L









Key Benefits

➤All In One Test Phantom
For digital and conventional radiography and fl uoroscopy
일반촬영장치, 필름장치, 투시장치, C-arm 까지 활용가능
➤ Integrated kV test point
The integrated Ytterbium information regarding the kV range
내장된 이테르븀으로 kV (관전압) 정보 제공
➤ Complete contrast determination
The two sections for contrast give information about dynamic as well as low contrast sensitivity
저대조도 영상을 테스트할 수 있도록 내장된 저대조도 오브젝트와 스텝웨지
➤ Flexible
The Primus L can be used with PMMA attenuator as well as 25 mm Al attenuator
25mm 알루미늄 필터와 PMMA 필터등의 사용가능​
​➤ Software - IQ Analyzer primus
The IQ Analyzer Primus software performs fast, quantitative and reproducible constancy
measurement on multiple imaging modalities, including CR, DR, RF, DX and XA systems.​
소프트웨어를 활용한 객관적인 데이터 분석 가능

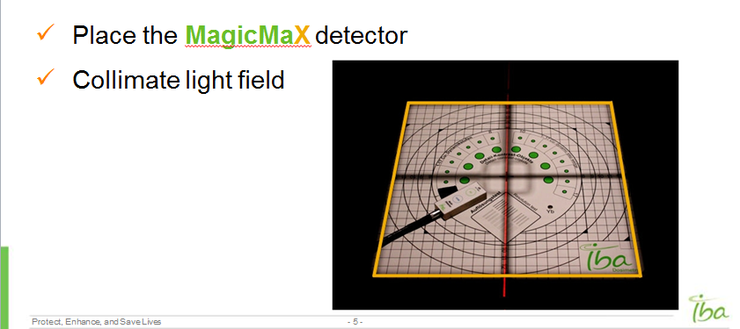

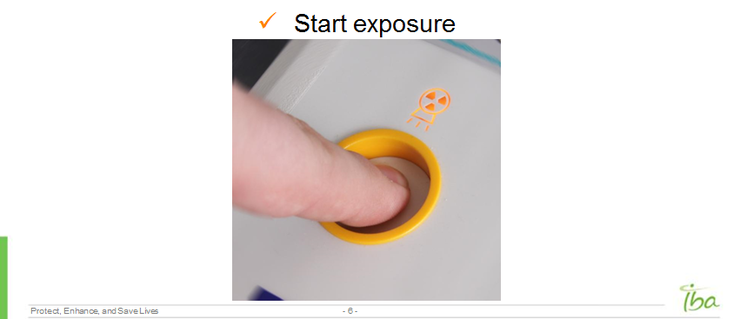

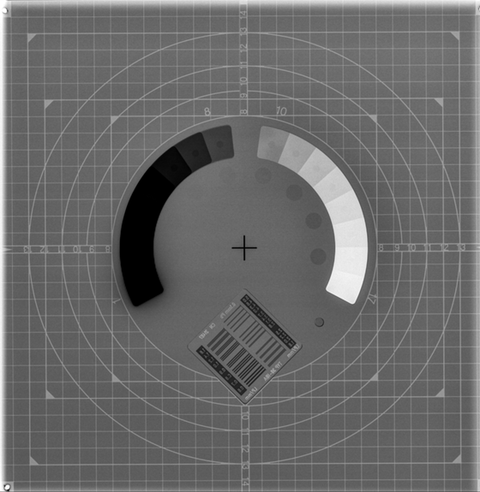

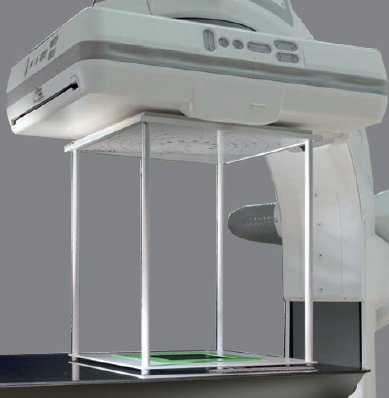

엑스레이장치에 필터와 함께 적용한 모습 찰영한 결과물은 다음과 같은 모습으로 나타납니다.






이미지 만으로도 육안으검사가 가능합니다.

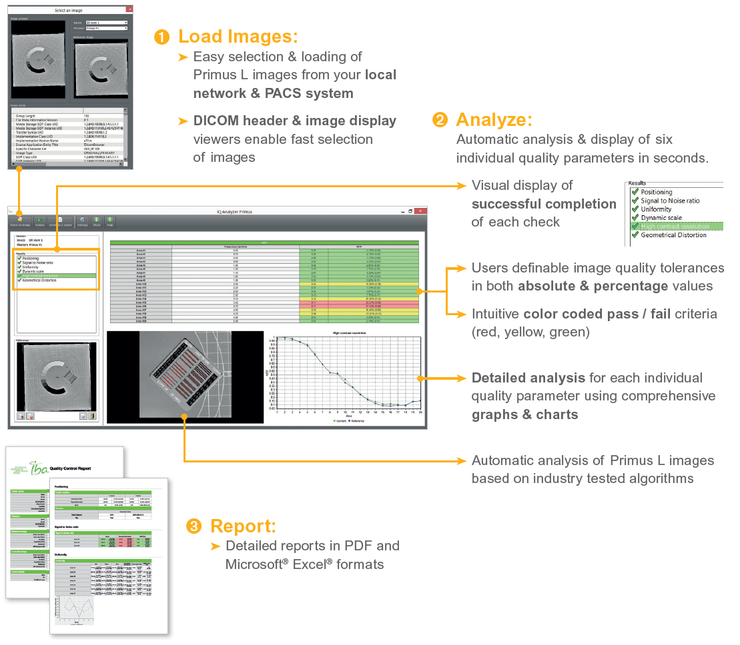

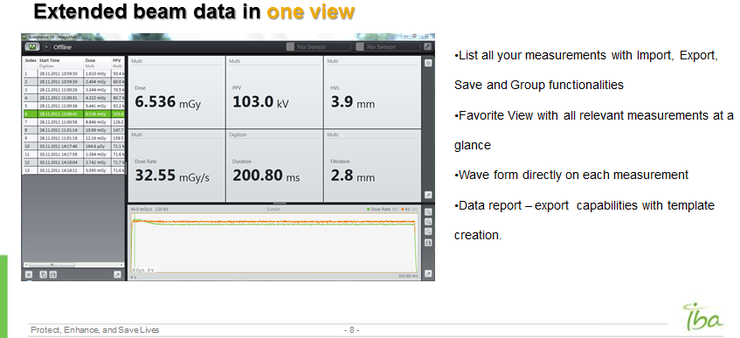

​IQ Analyzer Primus 소프트웨어를 활용하면 객관적인 데이터를 얻을수 있습니다.

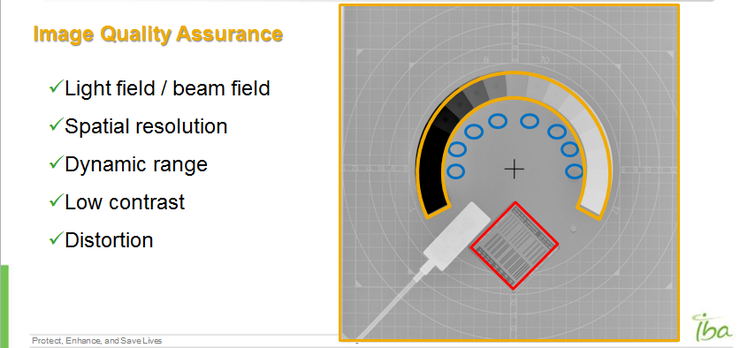

Image Quality Assurance – fast and comprehensive
Processor: Intel® Core™ 2 Duo
Memory: 1 Go DDRAM
Screen Resolution: 1024x768 pixels
Operating System: Windows® XP, Vista, 7, 8
The IQ Analyzer Primus software performs fast, quantitative and reproducible constancy
measurement on multiple imaging modalities, including CR, DR, RF, DX and XA systems.

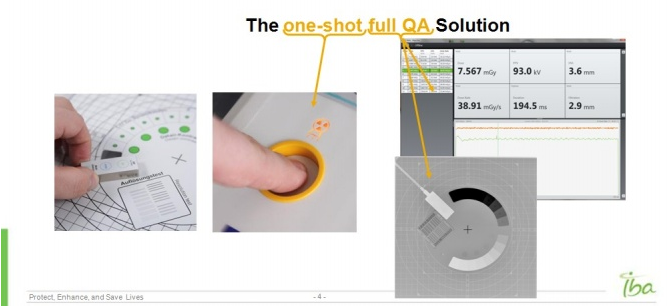

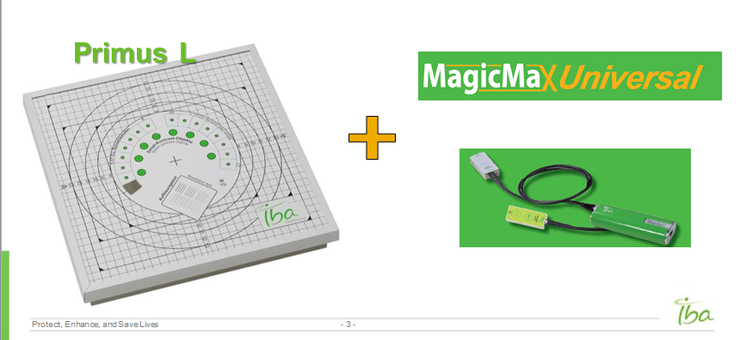

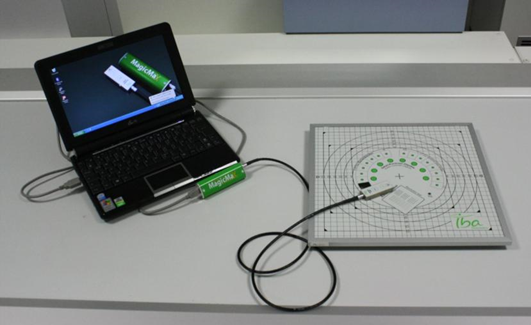

​엑스레이 종합검사기인 Magicmax와 함께 사용하면 영상과 엑스레이 품질 모두를 한번에 검사할 수 있습니다.

















Primus L Phantom과 Magicmax Universal을 함께 사용하면 dose, dose rate, kVp,mA, mAs, exposure time, HVL,illuminance, filtration, (선량 조사선량, 선량율 , 관전압 , 관전류, 조사시간 , 반가층 , 조도, 총 여과당량) 외에 조사야 차이 시험, 공간분해능 시험, 스텝웨지(step wedge), 저대조도 검사 (Low contrast) 등의 추가적인 검사를 한번에 끝낼수 있습니다.

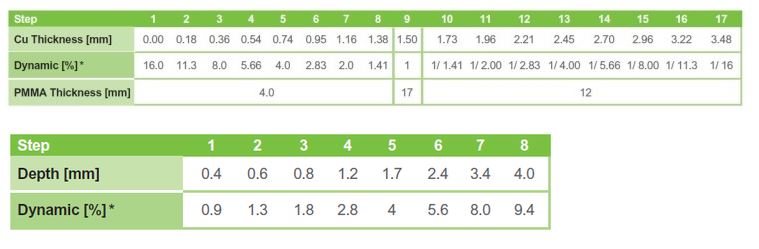

Primus L 팬텀 low Contrast (저대조도) 와 ​Stepwedge (스텝웨지) 사양

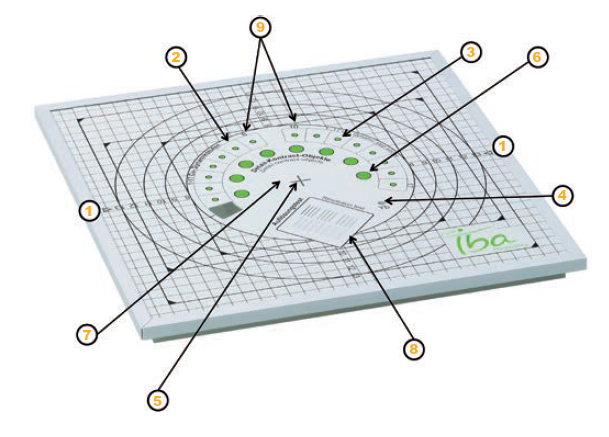

Primus L 팬텀 사양



1   Direction of the tube axis
2   Dynamic step wedge

3   16 detail contrast objects with a diameter of 4 mm, depth 2.5 mm in PMMA
     (for the evaluation of the contrast resolution in each step of the copper step wedge)
4   kV-test area made of Ytterbium, 0.78 mm thick
5   Line cross as center mark
6   Detail contrast objects

7   Unstructured inner area
8   High resolution plumb test 0.6 – 5.0 lp/mm
    (Dimension of the deposited plate of copper: 1.1 mm)
9   Radiographically visible numbers for indication of the dynamic steps​


​MagicMaX Full QA Kit
A complete set for Radiography and fluoroscopy QC
MagicMaX Universal, consisting of:
· MagicMaX Universal basic unit
· A USB stick containing MagicMaX software, drivers, user manual, etc.
· USB cables, 1 m and 5 m
Radiography multidetector XR including a detector holder
Mammography multidetector XM including a detector holder
CT chamber 10 cm (DCT10-MM), 30 cm (DCT30-MM) upon request
MagicMaX Current Probe, mAs-clamp
Illuminance Detector MM-LS
3 part PMMA CT phantom (head /body / pediatric)
Test Phantom Primus L
Primus L PMMA attenuator
PASMAM 1054 C phantom
Trolley case MM-CT
Carrying case MM-full QA (for Primus and PASMAM)

MagicMaX Rad/Flu Case
A complete set for Radiography and fluoroscopy QC
MagicMaX Universal, consisting of:
· MagicMaX Universal basic unit
· A USB stick (including MagicMaX software, drivers, user manual, etc.)
· USB cables, 1 m and 5 m
Radiography multidetector XR including a detector holder
MagicMaX Current Probe, mAs-clamp
Test Phantom Primus L
Illuminance Detector MM-LS
Primus L PMMA attenuator
Carrying case MM-R/F

MagicMaX CT Case
A complete set for CTDI measurements
MagicMaX Universal, consisting of:
· MagicMaX Universal basic unit
· A USB stick (including MagicMaX software, drivers, user manual, etc.)
· USB cables, 1 m and 5 m
Mammography multidetector XR including a detector holder
Illuminance Detector MM-LS
3 part PMMA CT phantom (head /body / pediatric)
CT chamber 10 cm (DCT10-MM), 30 cm (DCT30-MM) upon request
Trolley case MM-CT

MagicMaX Mammo Case
A complete set for Mammography QC
MagicMaX Universal, consisting of:
· MagicMaX Universal basic unit
· A USB stick (including MagicMaX software, drivers, user
manual, etc.)
· USB cables, 1 m and 5 m
Mammography multidetector (XM) including a detector holder
MagicMaX Current probe
PASMAM 1054 C phantom
Illuminance Detector MM-LS
Carrying case
