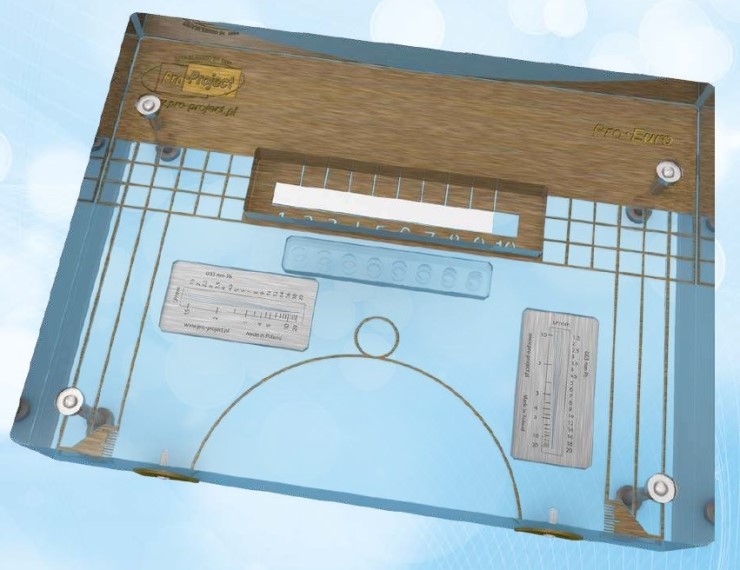

Pro-Euro





IEC 61223-3-2, “European Guidelines for Quality Assurance in Mammography Screening”의 규격을 만족하는 맘모팬텀입니다.

• optical density in the reference point
• spatial resolution
• dynamic range – image contrast
• threshold contrast visibility
• effective radiation field
• film processing
• automatic Exposure Control

Technical data
(can be modified to customer specifications):
• dimensions: 240 x 180 x 45 mm
• additional 20 mm PMMA plate
• reference point (60 mm from the thorax side)
• pattern for line pair resolution evaluation (from 1.5 to 20.0 LP/mm) perpendicular and parallel to the thorax side
• 10-step aluminium wedge
• 8 low contrast objects
• markings (graduations) for assessment of the effective radiation field
• space covered with brass for sensitometric measurements
• area for the measuring chamber of the automatic exposure timer

Product features:
• complies with:
– IEC 61223-3-2
– “European Guidelines for Quality Assurance in Mammography Screening”
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
