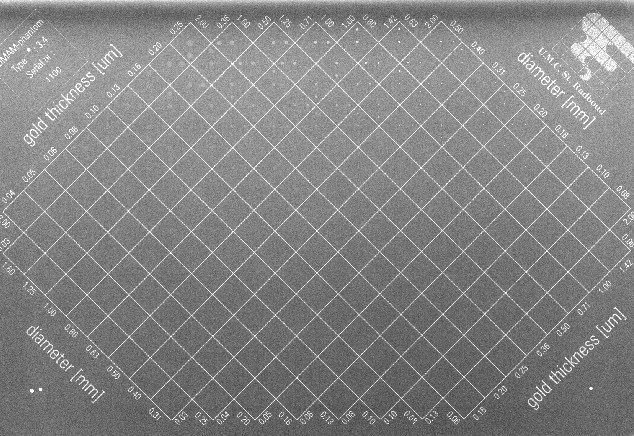

CDMAM 3.4
“Gold Standard” Mammographic Contrast-Detail phantom

유방촬영장치의 저대조도를 테스트하는 맘모 PMMA 팬텀 입니다.
소프트웨어를 활용하여 저대조도의 분해능을 확인할 수 있습니다.
​
​Introduction
- Aid for improving image quality
- Monitors the image information content
Contrast-Detail curve/detectability
Test low contrast and spatial resolution
In combination with Artinis CDMAM 3.4 Phantom
Easy to use
A necessity for maintaining quality
Generates quality reports​
​
​Applications
- Optimization and evaluation of digital mammography systems
- Determination of the optimum exposure technique
- Comparison of image quality at various thicknesses of PMMA
- Comparison of image quality with various film-screen combinations
- Determination of the optimum background density
- Comparison of different mammography systems





Characteristics

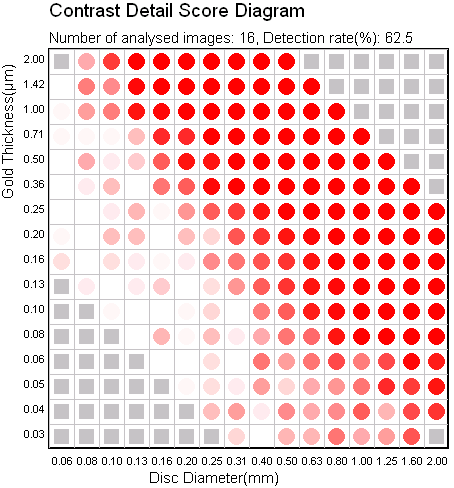

Automatic scoring and correction diagram

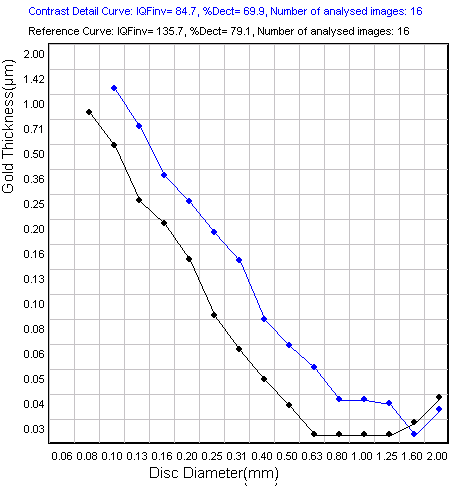

Contrast Detail curve
Reference Contrast Detail curve
Image quality figure and % Detected discs
Based on EUREF CDCOM program
User definable number of images

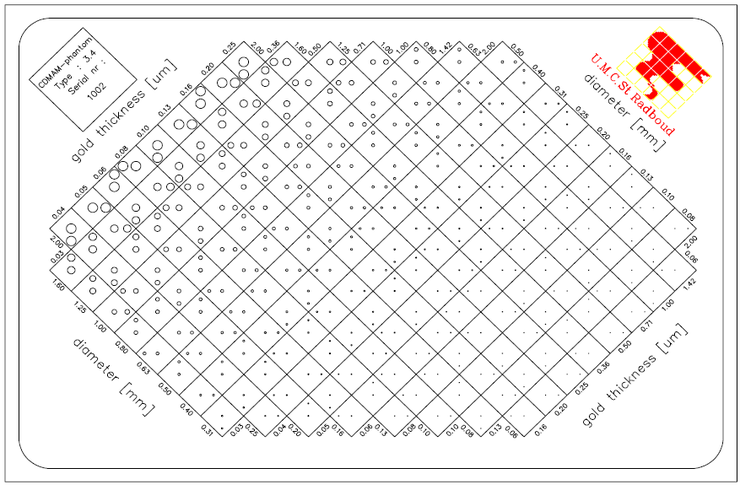

• 0.5 mm Aluminum (99.5%) base
• Pure Gold discs
• Thickness 0.03 .. 2.00 μm (16 exponential steps)
• Diameter 0.06 .. 2.0 mm (16 exponential steps)
• PMMA Cover 162 * 240 mm
• Four 10 mm thick PMMA plates with identification markers
​
Formats​
DICOM Format
Runs on Windows XP®, Vista® and 7® platforms
Free USB port needed​
