PASMAM-1054 A/C
Digital Mammography Acceptance and Constancy testing

독일의 PAS 1054 가이드라인에 따라 제작된 PAS 1054팬텀입니다.
For Acceptance- and Constancy Tests of Mammographic Equipment according PAS 1054

Functionality
• Especially developed for Digital Mammography
• Basis phantom (40 mm) with Aluminium step wedge(14 steps from 0—5,2 mm)
• Structure plate (6 mm) with rotatable lead line resolution test pattern (5, 6, 7, 8 und 10 Lp/mm) and saving for the different inserts
• Optional insert for Acceptance testing with 5 times 2 Golddiscs
• Insert for Constancy testing (Conform ACR phantom)
• Insert of PMMA with quadratic Marking
• Insert High Contrast (50% covered with steel plate)
• Insert for Contrast Noise ratio (covered with 0,1mm Alu)
• 4 rows of metal balls for check of missed tissue atchest wall side
• Four attenuation plates (2 x 10 mm, 2 x 20 mm)
• More attenuation plates possible

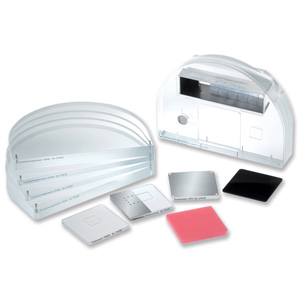

Consisting of:
➤ 40 mm basic body with integrated Al stepwedge with 14 steps from 0 to 5.2 mm
➤ 6 mm structural plate with recess for test inserts,2 rows of steel balls with integrated turnable resolution test in line groups of 5, 6, 7, 8 and 10 lp/mm
➤ Attenuation body 3 x 20 mm PMMA
➤ Attenuation body 1 x 10 mm PMMA Attenuation body 1 x 6 mm PMMA (at some X-ray units necessary)
➤ Test insert for acceptance tests with golden discs – AP
➤ Test insert PMMA with square marking
➤ Test insert for constancy tests – ACR
➤ Test insert high contrast resolution
➤ Test insert contrast to noise ratio
➤ Carrying case
