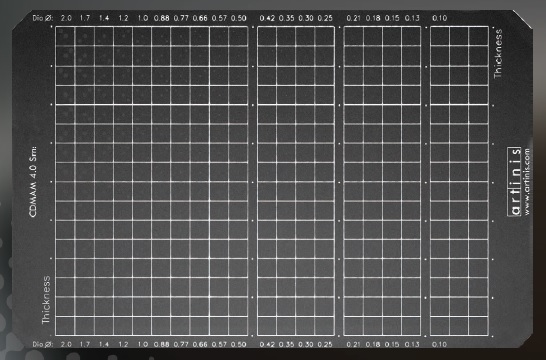

맘모장비에서 사용하는 저대조도 팬텀 CDMAM 4.0입니다.
총 672개의 gold disc로 contrast detail이 구성되어 있으며 소프트웨어를 통한 장확한 분석이 가능합니다.



The Artinis CDMAM 4.0 is the next generation Mammograhy Contrast Detail Phantom with improved specifications, created from a highly accurate production process.
The phantom is optimized for European Guidelines for Quality Assurance in Digital Mammography.
The gold discs are placed in the area of interest of the psychometric curve for accurate determination of Contrast Detail curves.

SPECIFICATIONS
+ 672 gold discs divided in 21 exponential steps, diameter ranging from 0.08 to 2.0 mm.
+ Every single diameter has its own optimized gold thickness range with 16 different thickness steps.
+ 0.5 mm polished aluminium (99.5%) base.
+ PMMA cover (240 x 162 x 3 mm).
+ Includes 4 PMMA plates (10 mm polished, thickness tolerance ± 0.1 mm).

+ Thickness from 0.012 μm to 2.8 μm, tolerance ± 3% (Mean ± 2SD).
+ Diameter from 0.08 mm to 2.0 mm, tolerance ± 0.005 mm (Mean ± 2SD).
+ 43 additional reference discs for optimal computerized scoring.




ANALYSIS SOFTWARE

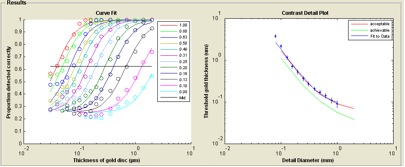

Automated determination of threshold contrast
The CDMAM 4.0 phantom has been specially designed for automatic image scoring.

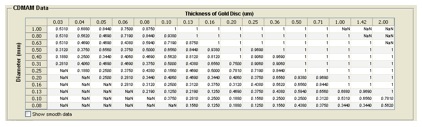

For analysis of the phantom images we have developed CDMAM 4.0 Analyser software, based on CDCOM for CDMAM 4.0.
With the analyser software the threshold contrast thicknesses are determined according the Supplement to the European Guidelines fourth edition Diagnosis.
