Dental CT 에서 사용하는 QC팬텀입니다. IEC 61223-3-4 and IEC 61223-3-5 규격을 만족합니다.

아래의 실험이 가능합니다.
• image geometry
• pixel (matrix) size
• artefacts, noise
• homogeneity
• linearity
• contrast
• high-contrast resolution
• low-contrast resolution (contrast sensitivity)

The Pro-Dent CT phantom is an innovative solution for Quality control of dental tomography systems and other X-ray devices with 3D function. It was developed in cooperation with leading producers of dental tomography units.
The size of the phantom corresponds to a human skull (15cm in diameter) and all test patterns are located in the area matching the maxilla. This allows for a reliable and quick testing of X-ray devices, even with a limited field of visualization. Also, quality is evaluated in the clinically essential region.



Technical data (can be modified to customer specifications) :

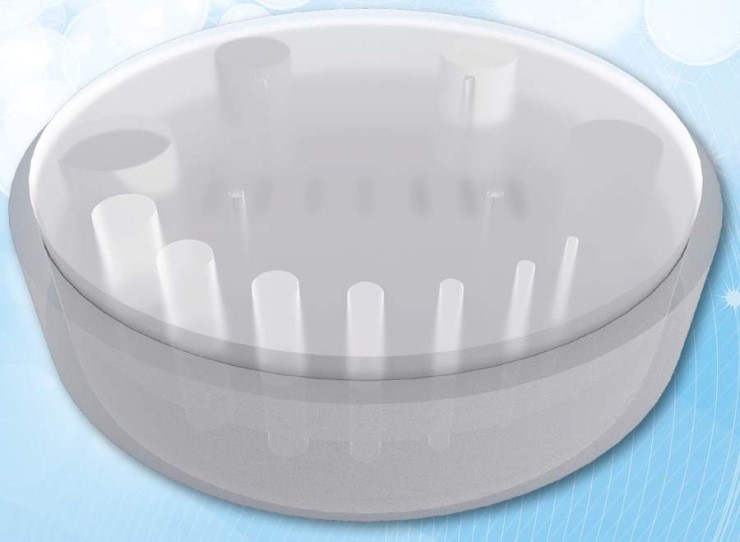

• main test module dimensions: ø 150 mm, 40 mm thickness, containing:
– four sensitometric samples ø 20 mm made of: PTFE (teflon), POM C (polyoxymethylene), PE 300 (polyethylene) and air
– four o 3 mm rods, filled with air, placed in vertexes of a square (side length 50 mm)
– seven low contrast rods of a different diameter: 2, 3, 4, 6, 8, 10, 12 mm, filled with a substance whose density is 3% different from the body of the module
– seven high contrast patterns for line pair resolution evaluation, from 10 to 16 LP/cm
– three beads: ø 0.2, 0.25, 0.3 mm
• optional ø 150 mm, 20 mm thick geometry modue with two pairs of aluminum ramps, empty rods in vertexes of a square and positioning markers for detailed evaluation of image geometry and laser position verification

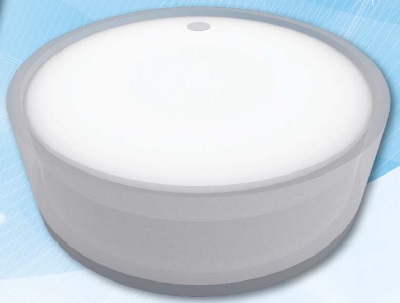

• additional smaller homogenous cylinder filled with a substance with a density similar to water: ø 150 mm, 30 mm thickness
• additional larger homogenous cylinder filled with a substance with a density similar to water: ø 150 mm, 130 mm thickness

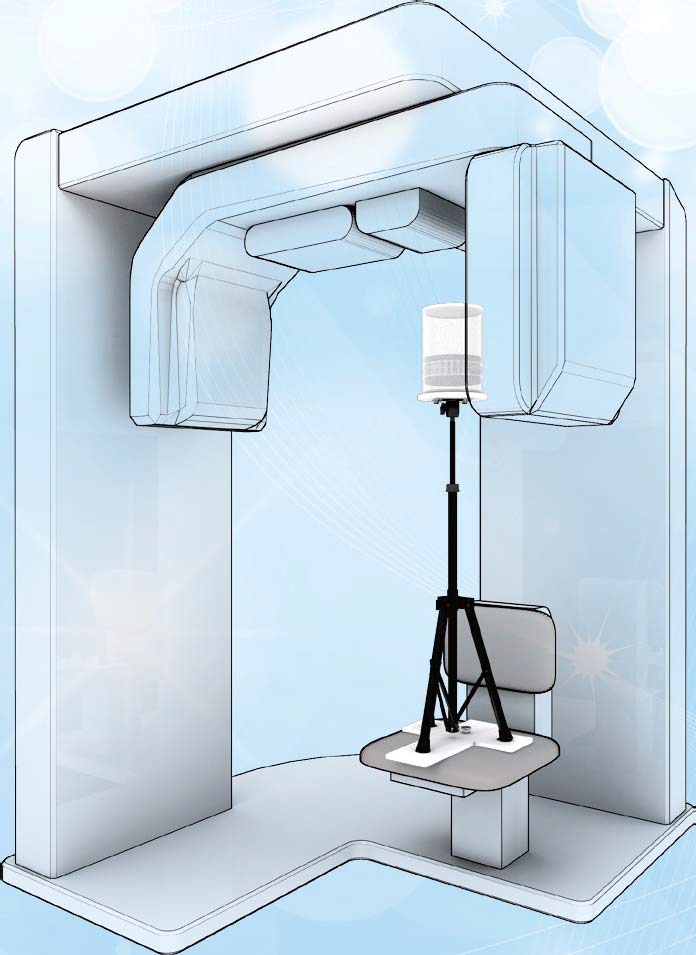

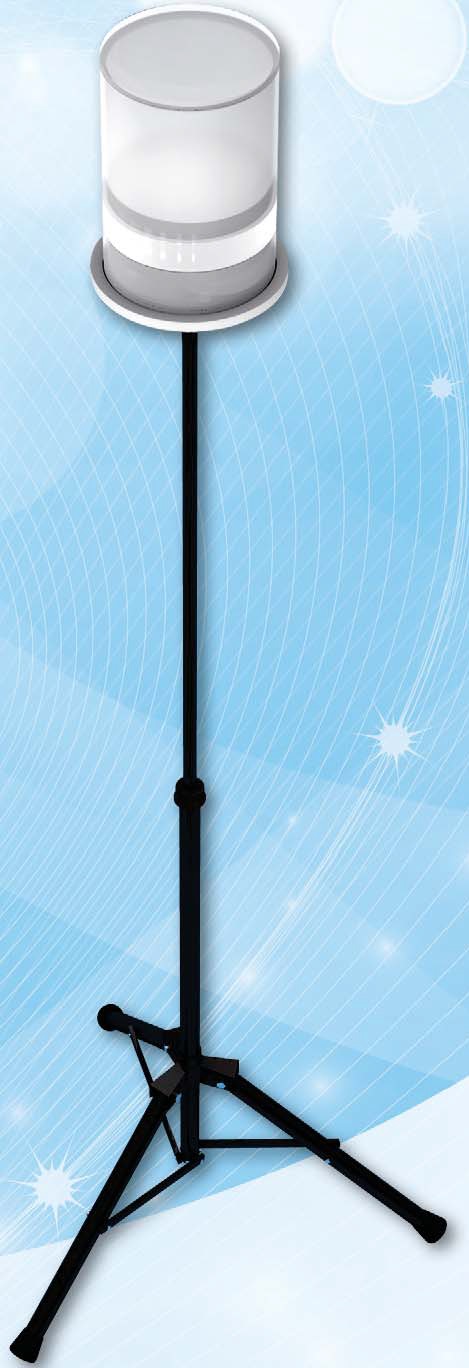

• test stand with a table for placing the phantom in the test position
• folding base for test stand positioning on the X-ray unit’s chair
• convenient, portable case for storing and transporting the phantom









Product features:
• complies with:
– IEC 61223-3-4 and IEC 61223-3-5
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
