Á¦¸ñ | IMRT Homogeneous Phantom, Model 002H5 |

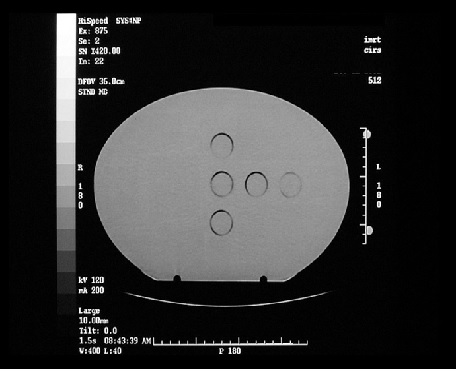

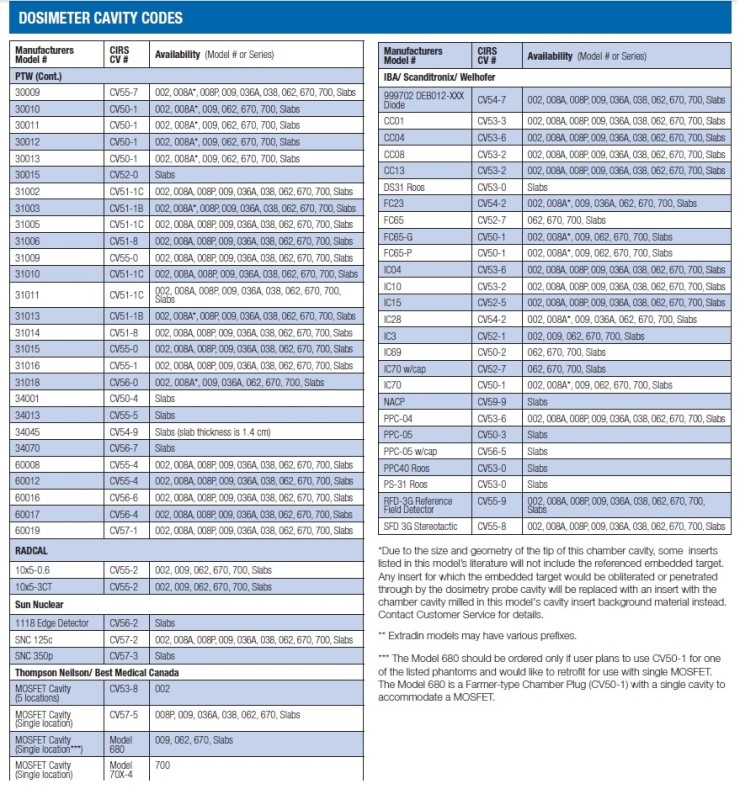

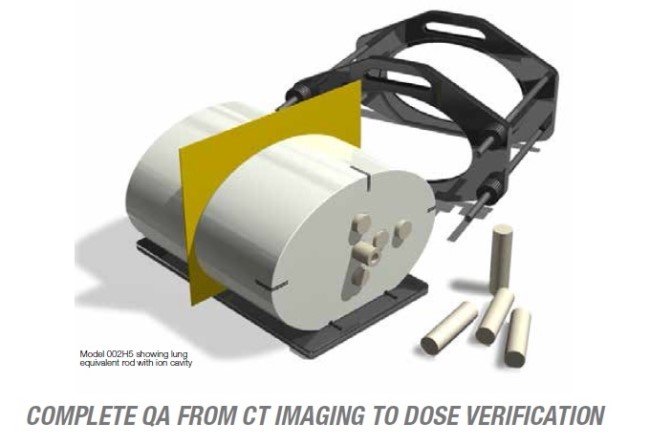

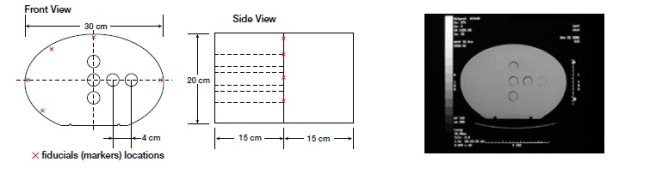

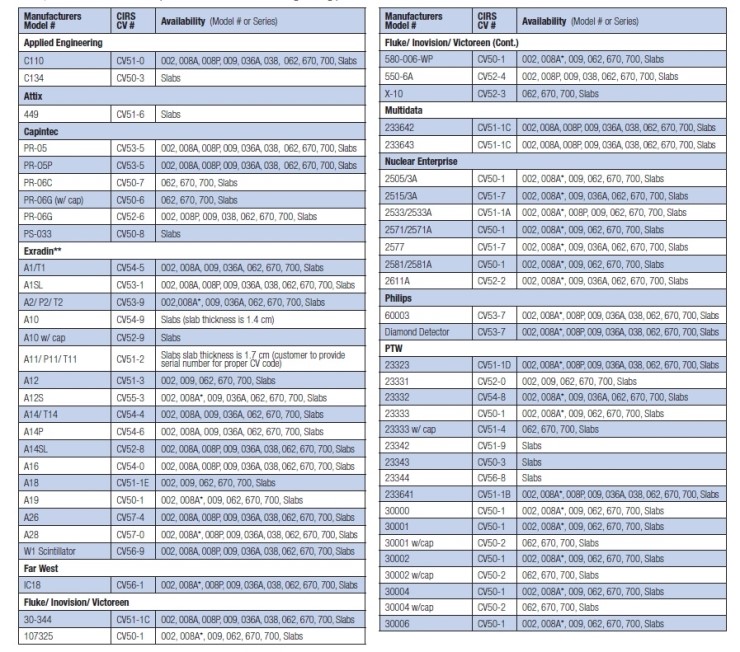

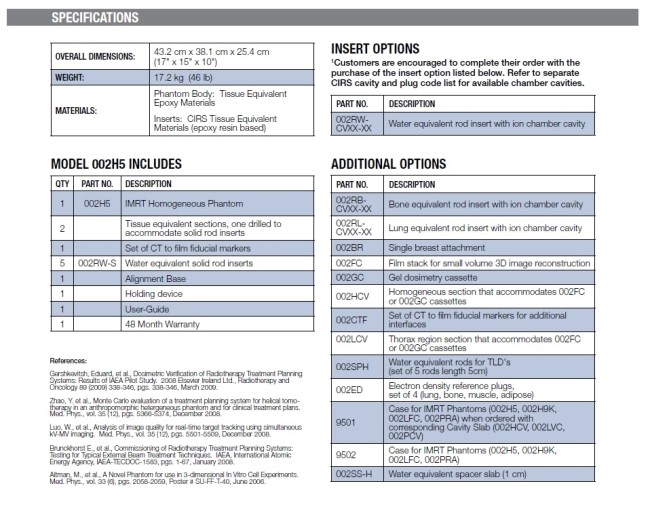

¿µÈ¿Í À̿ è¹ö ¼±·®¿¡ ´ëÇÑ CIRS ¸ðµ¨ 002H5 IMRT ÆÒÅÒÀº °³º° ȯÀÚÀÇ °èȹ ¹× ¹è´Þ È®ÀÎÀ» À§ÇØ °£´ÜÇϸ鼵µ ½Å·ÚÇÒ ¼öÀÖ´Â ¹æ¹ýÀ» Á¦°ø ½Ã¿îÀü ¹× Ä¡·á °èȹ ½Ã½ºÅÛÀÇ ºñ±³¸¦ µÑ·¯½Ñ º¹ÀâÇÑ ¹®Á¦¸¦ ÇØ°áÇϱâ À§ÇØ ¼³°èµÇ¾ú½À´Ï´Ù. The CIRS Model 002H5 IMRT Homogeneous Phantom for Film and Ion chamber Dosimetry is designed to address the complex issues surrounding commissioning and comparison of treatment planning systems while providing a simple yet reliable method for verification of individual patient plans and delivery. The 002H5 is homogeneous and elliptical in shape. It properly represents human anatomy in size and proportion. It measures 30 cm long x 30 cm wide x 20 cm thick (PA). The phantom is constructed of proprietary tissue equivalent epoxy materials. Linear attenuations of the simulated tissues are within 1% of actual attenuation for bone and water from 50 keV to 15 MeV. Water equivalent interchangeable rod inserts accommodate ionization chambers allowing for point dose measurements in multiple planes within the phantom.1 The phantom also supports radiographic or GafChromic¢ç film at mid-plane in the phantom for analysis of dose distributions2. Additional inserts are available to support a variety of other detectors including TLD¡¯s, MOSFET, and diodes. Handling, assembly and proper orientation of the phantom is made easy with the use of a unique alignment base and holding device. The surfaces of the phantom are etched for ease of laser alignment, and CT markers ensure accurate film to plan registration. IMRT VERIFICATION SYSTEM CIRS IMRT phantoms are manufactured from tissue equivalent materials that mimic within 1% from 50 keV to 15 MeV for accurate simulation from CT planning to treatment delivery. The interchangeable rod design allows the phantom to accommodate a multitude of dose measurement devices such as ion chambers, TLD, diodes and MOSFET¡¯s in the same location within the phantom.1 Phantom cross sections accommodate GafChromic¢ç or standard ready-pack films. CIRS offers a variety of dosimetry phantoms that accommodate common dosimetry probes (chambers, diodes, and other dosimeters). Solid plugs are also available to fill cavities not in use. When ordering a phantom for use with a probe, specify the exact probe you intend to use. If your probe is not listed below, CIRS will need the actual probe or the manufacturer¡¯s engineering printsin order to provide a quote. The "Availability Column¡± is solely provided to identify phantoms that can mechanically accommodate specific probes. It is not an endorsement for use of any particular probe nor does it mean it is the most appropriate probe for use. |
|
