CIRS는 전립선 암, 머리와 목, 가슴과 폐와 같은 가장 일반적인 IMRT 치료 영역에 맞게 IMRT 팬텀을 이용할 수 있습니다.

CIRS offers a variety of IMRT phantoms to match the most common IMRT treatment areas such as prostate, head and neck, breast and lung.
​

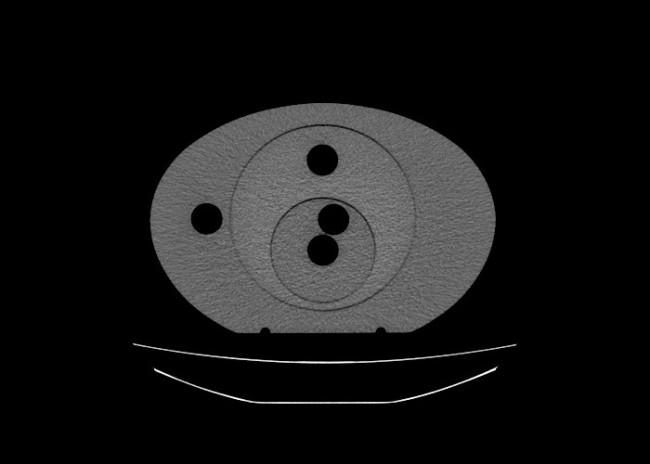

The phantom is constructed of proprietary tissue equivalent epoxy materials. Linear attenuations of the simulated tissues are within 1% of actual attenuation for bone and water from 50 keV to 15 MeV. These unique materials eliminate the need for correction factors, thus improving accuracy and saving time. The phantoms simulate the patient through the entire process from CT data acquisition and planning to delivery and dose verification.
​

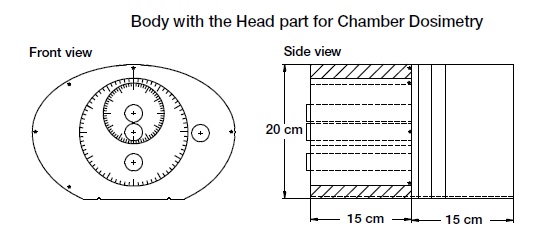

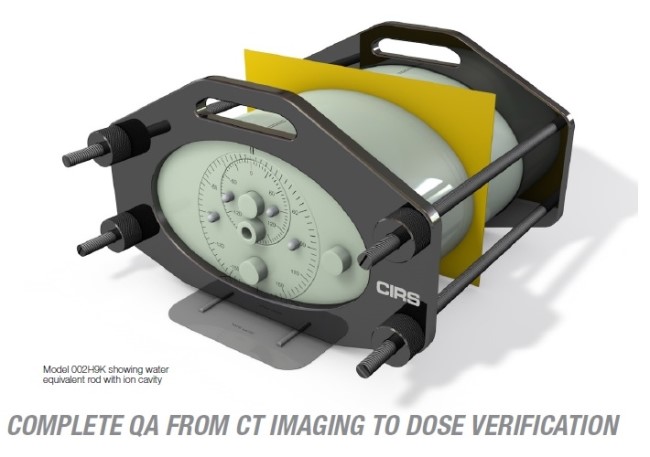

The Model 002H9K was designed in collaboration with David D. Loshek PhD. With the H9K, choose any point dose location within a circular area with diameter of 11.2 cm by simply adjusting the two rotating cylinders. Lung and bone equivalent rods can be positioned at any location within the circular area for assessment of heterogeneity correction. Remove the center cylinder from the phantom body to simulate head and neck set-ups.




IMRT VERIFICATION SYSTEM
CIRS IMRT phantoms are manufactured from tissue equivalent materials that mimic within 1% from 50 keV to 15 MeV for accurate simulation from CT planning to treatment delivery. The interchangeable rod design allows the phantom to accommodate a multitude of dose measurement devices such as ion chambers, TLD, diodes and MOSFET’s in the same location within the phantom.* Phantom cross sections accommodate GafChromic® or standard ready-pack films.
