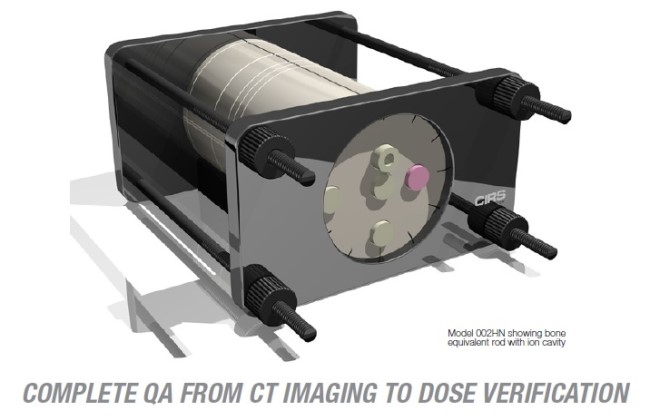

Á¦¸ñ IMRT Head and Neck Phantom, Model002HN







The phantom is circular in shape, approximates the size of an average patient. Tissue equivalent interchangeable rod inserts for ionization chambers allow for point dose measurements in multiple planes in the phantom, film calibration and isodose normalization.* The phantom also supports film dosimetry with not only standard radiographic films but also GafChromic¢ç media 1. Additional inserts are available to support a variety of other detectors including TLD¡¯s, MOSFET, and diodes.

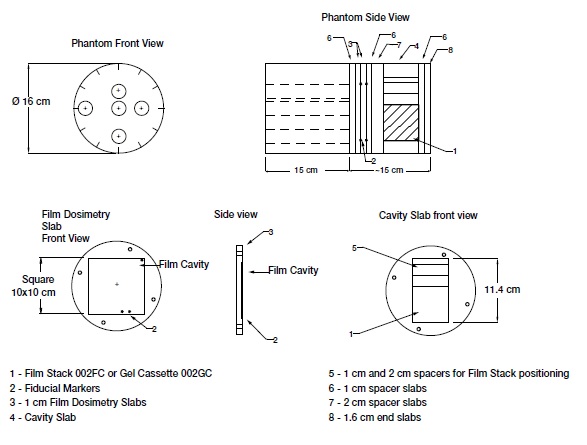

The Model 002HN accommodates one Ready PackTM containing 10¡± x 12¡± films in transverse orientation, two radiochromic or radiographic 10 x 10 cm films in transverse orientation and a stack of thirteen radiochromic films pre-cut to 63.5 x 63.5 mm in three different orientations.

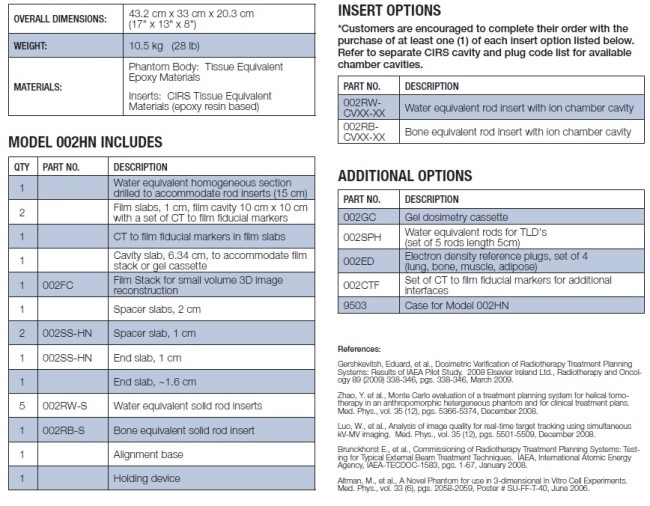

The Model 002HN has an optional four Electron Density reference plugs which can be interchanged in five separate locations within the phantom. The surface of the phantom is etched with grooves to ensure proper orientation of the CT slices and accurate film to plan registration. An optional cranial bone ring is also available.





IMRT VERIFICATION SYSTEM
CIRS IMRT phantoms are manufactured from tissue equivalent materials that mimic within 1% from 50 keV to 15 MeV for accurate simulation from CT planning to treatment delivery.
The interchangeable rod design allows the phantom to accommodate a multitude of dose measurement devices such as ion chambers, TLD, diodes and MOSFET¡¯s in the same location within the phantom. * Phantom cross sections accommodate GafChromic¢ç or standard ready-pack films.
