영화와 이온 챔버 선량에 대한 CIRS 모델 002LFC IMRT 흉부 팬텀은 개별 환자의 계획 및 배달 확인을 위해 간단하면서도 신뢰할 수있는 방법을 제공하면서 치료 계획 시스템의 시운전 및 비교를 둘러싼 복잡한 문제를 해결하기 위해 설계되었습니다.

The CIRS Model 002LFC IMRT Thorax Phantom for Film and Ion Chamber Dosimetry is designed to address the complex issues surrounding commissioning and comparison of treatment planning systems while providing a simple yet reliable method for verification of individual patient plans and delivery.
​

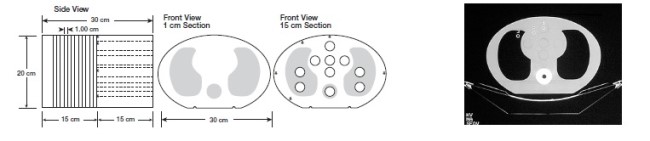

The 002LFC is elliptical in shape and properly represents an average human torso in proportion, density and two-dimensional structure. It measures 30 cm long x 30 cm wide x 20 cm thick. The phantom is constructed of proprietary tissue equivalent epoxy materials. Linear attenuations of the simulated tissues are within 1% of actual attenuation for water and bone, and within 3% for lung from 50 keV to 15 MeV.

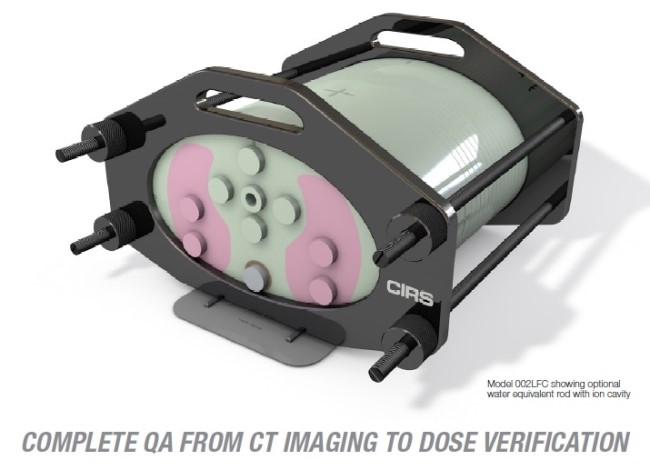

Tissue equivalent interchangeable rod inserts accommodate ionization chambers allowing for point dose measurements in multiple planes within the phantom.* Hole placement allows verification in the most critical areas of the chest. One half of the phantom is divided into 12 sections, each 1 cm thick, to support radiographic or GafChromic® film 1. Additional inserts are available to support a variety of other detectors including TLD’s, MOSFET, and diodes.

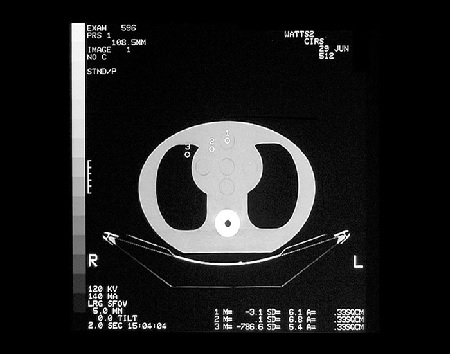

Handling, assembly and proper orientation of the phantom is made easy with the use of a unique alignment base and holding device. The surfaces of the phantom are marked for ease of laser alignment. CT markers are included to ensure accurate film to plan registration on the center film.





IMRT VERIFICATION SYSTEM
​
CIRS IMRT phantoms are manufactured from tissue equivalent materials that mimic within 1% from 50 keV to 15 MeV for accurate simulation from CT planning to treatment delivery. The interchangeable rod design allows the phantom to accommodate a multitude of dose measurement devices such as ion chambers, TLD, diodes and MOSFET’s in the same location within the phantom.* Phantom cross sections accommodate GafChromic® or standard ready-pack films.
