모델 036A-CVXX-XX의 *는 관절 척추, 갈비뼈, 폐를 포함하는 의인화 된 흉부 기관이며 모든 물질 및 MV kV의 에너지에 사용하기에 적합합니다.
Gapchronic 필름 및 나노 점 ™ 선량 측정을위한 3 차원 척추 해부학과 옵션 복부 부분 (모델 036-01)를 별도로 사용할 수 있습니다. 또한 CBCT 이미지 품질 팬텀 (모델 062QA-35)를 수용 할 수 있습니다. 모델 036-01은 흉부와 비 동일 평면 선량 평가를 허용하는 추가 러스를 제공합니다.

​The high dose per fraction associated with SBRT necessitates a high degree of accuracy in target localization and dose delivery. Small errors can result in significant under treatment of portions of the tumor volume and over dosage of nearby normal tissues. The E2E® SBRT Phantom provides a means to check the entire treatment chain during commissioning and routine QA.
​
The Model 036A-CVXX-xx* is an anthropomorphic thorax body containing articulated spine, ribs, and lungs. All materials are suitable for use in kV and MV energies.
​
The thorax section contains two lung tumor volumes with ionization chamber cavities in the center of each target*. The phantom also includes a lung insert with an irregularshaped lung target. The proximity of the lung target to the vertebral body allows clinicians to measure high-resolution dose distribution to the target and dose to the spinal chord in a single delivery. A transversal slice of the thorax enables high-resolution dose distribution measurements to the vertebral body and vertebral chord. Ready-cut films with integral registration holes are available for both the lung insert and transversal slice.
​
The surface of the thorax body is machined with concentric circle targets and alignment marks for daily system checks.

An optional abdominal section (Model 036-01) with 3D spine anatomy for film and nanoDot™ dosimetry is available separately. It can also accommodate the CBCT Image Quality phantom (Model 062QA-35). Model 036-01 provides extra bolus to allow dose assessments with the abdomen due to non-coplanar beams.

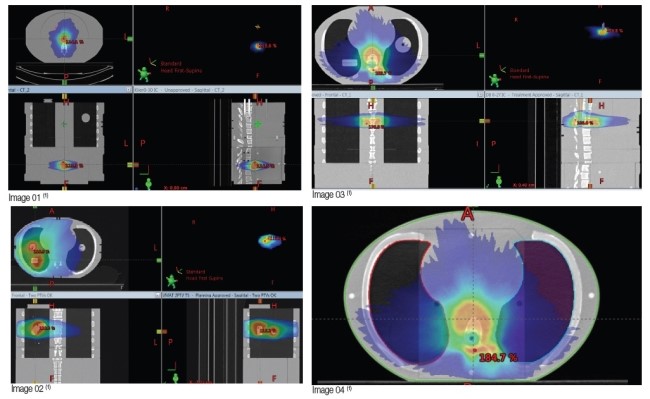

(1) Images provided by UZ Leuven, “Evaluating a versatile new-generation anthropomorphic phantom for Stereotactic Body Radiation Therapy”, E35-2122
