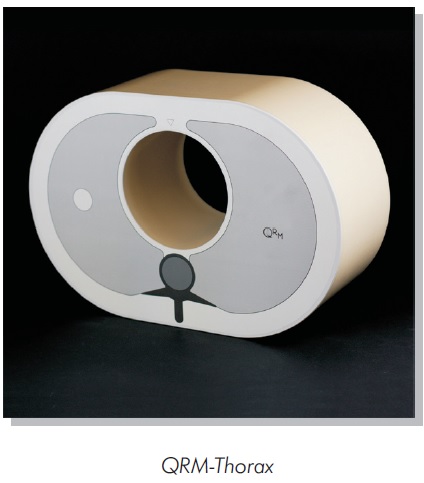

QRM-Thorax
The Thorax Phantom is suitable to use as an anthropomorphic surrounding for several standard imaging inserts for investigation of the influence of scan parameters in CT.
​

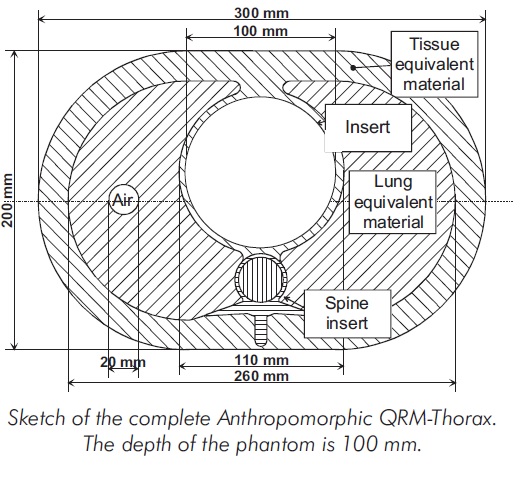

QRM-Thorax comprises artificial lung lopes, a spine insert, and shell of soft tissue equivalent material.
The plastics used in this antropomorphic phantom mimic human tissues in the thorax with respect to density and X-ray attenuation characteristics of a human thorax.
​
It consists of a standard bore hole with diameter of 100 mm. Multiple standard cylinders for image quality purposes are available. Please have a look at the product section: Image Quality and Dose at www.qrm.de.​
​
The QRM-Thorax is also available with drilled holes according to CTDI-specifications for dosimetry purpose.
​
Specifications
​
Phantom weight (total) ............. 2740 g
Dimensions ............................. 200 x 300 mm
Diameter of bore hole ............. 100 mm
Height of phantom .................. 100 mm

Base material ............. tissue equivalent resin
                                  (@120 kV)
Lung .......................... app. -800HU
Spine ................ bone like (corticalis / spongiosa)

Extension Rings (e.g. Fat Rings) are available upon request!​
