QRM-Liver-Phantom

This phantom can be used in CT and FD-CT for the examination of low contrast details in the liver region.
The phantom is also a good choice to analzye computer aided diagnoses (CAD) procedures.

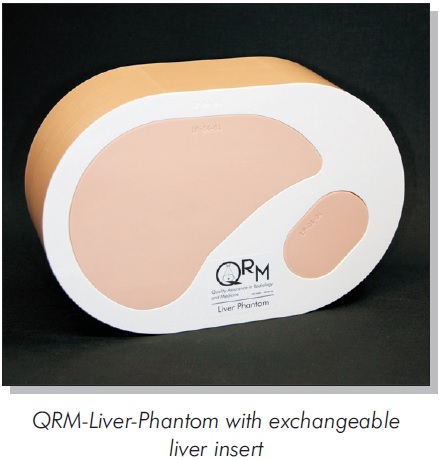

The abdomen body comprises spine with vertebral bone and a shell of soft tissue equivalent material. The plastics used in this anthropomorphic phantom mimic human tissues in the thorax with respect to density and X-ray attenuation characteristics (tissue-equivalent solid of typically 35HU+/- 5HUat 120 kV).

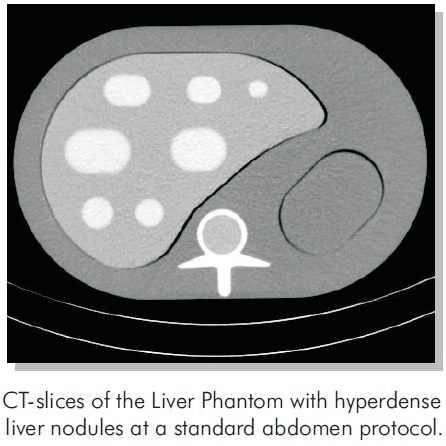

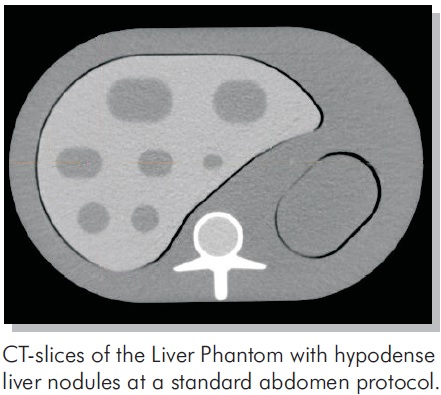

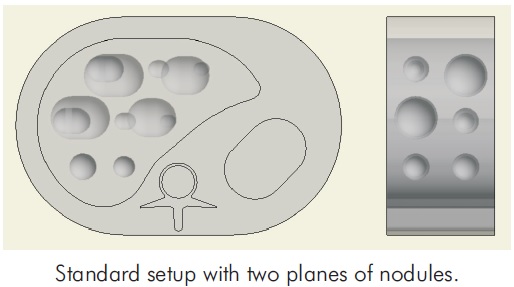

The liver insert contains multiple oval and spherical lesions of different size, shape and in two different densities. The shape of these tumors can be adapted in size and density upon your request.

The spleen insert is solid homogeneous material comprising the same desnity as the phantom body.

Tumors or other structures are available upon request.










Specifications
​

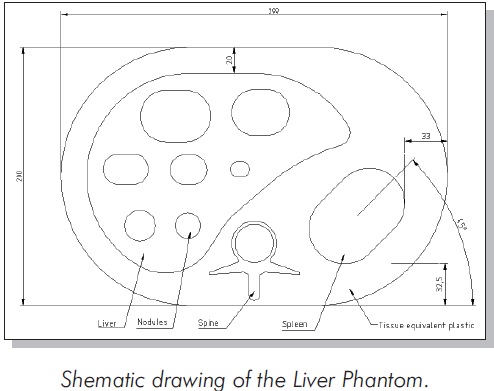

​Phantom size.................. 300 x 200 x 100 mm
Phantom weight (total)...................... 4200 g
Base material ................. ..................resin

Approximately CT values at 120 kV
Abdomen Body................ 35HU
LiverInsert...................... 90HU
Liver NoduleTyp1.............. 45HU
Liver Nodule Typ 2........... 180HU
Spleen Insert.................... 90HU

For further information visit us at .
Extension Rings (fat rings) are also available in
different sizes to simulate obese patients.
​
