QRM-Pediatric-Phantoms

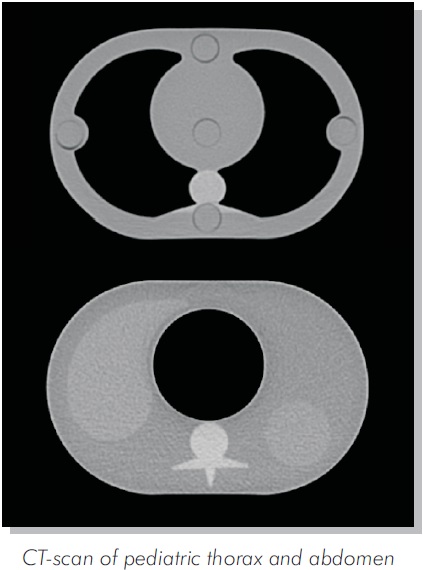

Anthropomorphic thorax and abdomen phantoms in the size of an infant 150 x 100 mm² (breast measurement of 414 mm).
​

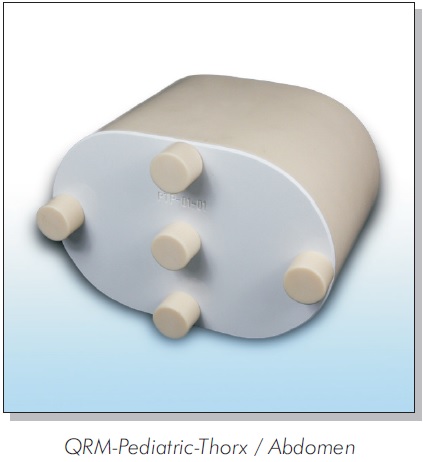

​QRM-Pediatric-Thorax comprises artificial lung lopes, a spine insert, and shell of soft tissue equivalent material.
​
QRM-Pediatric-Abdomen​ comprises a fixed liver and spleen insert, a spine insert, and shell of soft tissue equivalent material. It is available as well in a full body version (without liver and spleen).

The plastics used in these antropomorphic phantom mimic human tissues with respect tso density and X-ray attenuation characteristics of the human thorax and abdomen.
​
The phantoms can be delivered as well with an aditional bore hole of 50 mm diameter at the hear/stomacht position to adapt different inserts.
​
The QRM-Pediatric-Phantom is also available with drilled holes according to CTDI-specifications for dosimetry purpose or to add different contrast inserts as CaHA or iodine.

​Specifications​

Phantom body .......................... 100 x 150 mm
Phantom length .................................. 100 mm
Phantom weight ........................... 1.2 / 1.6 kg
​
Material: tissue .................... 35 HU (120 kV)
lung ........................ app. -800 HU
liver / spleen............55 HU (120 kV)

Bore hole for insert upon request ........... 50 mm
