The Electron Density Phantom (EDP) is an important tool to calibrate radiation oncology treatment plans to ptimize delivered dose to the patient.
​

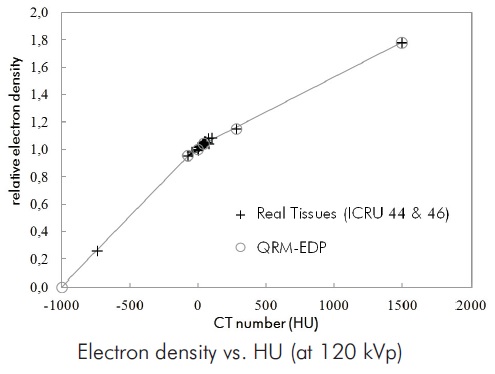

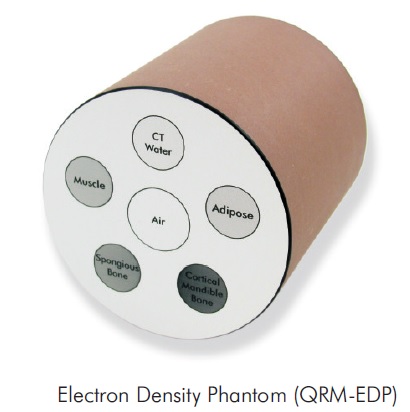

​The Electron Density Phantom QRM-EDP houses inserts providing 5 different tissue equivalent materials used for the HU to electron density calibration of CT scanners and radiation therapy treatment planning systems.​ All tissue equivalents represent the real human tissue regarding its physical density and electron density.
​
The new revised edition of the EDP provides tissue equivalent realistic physical densities AND electron densities of human tissues of highest interest in radiation oncology treatment planing. The non-accordance of these values is a major handicap of other available electron density (or tissue equivalent) phantoms. Particularly in the higher density range (bone), this is the first phantom that provides realistic tissue simulation and values.
​
​Specifications

​Phantom diameter: 100mm
Phantom height: 100mm
Phantom weight: 0.9 kg
Phantom body: Water equivalent ( ©)
app. 0±5HU(at 80-140 kV)
Inserts:
Adipose (20 mm)
Water (20 mm)
Muscle (20 mm)
Spongiouse Bone (20 mm)
Cortical (Mandible) Bone (20 mm)
Air (central insert,D=30 mm)
​
Available data: Density, electron density, electron density relative to water, stopping power Tissue equivalent inserts are also available separately!
