Adult Head

평균의 성인 남성의 헤드를 기반으로 디자인 되었으며 MRI, Ultrasound and X-Ray CT 에 사용할 수 있게 제작되었습니다.
뇌에 압력을 발생시킬수 있으며 혈액 모사액 등의 액체를 체워넣을 수 있습니다.

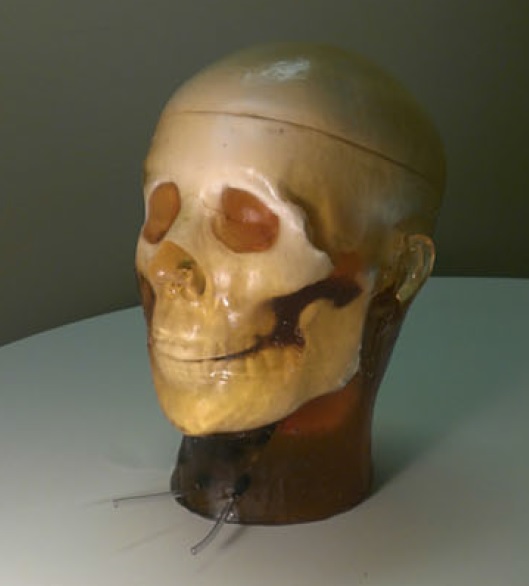

The phantom is designed based on an average human male head and it is made of realistic tissue mimicking materials suitable for Ultrasound, MRI and X-Ray CT applications.

The phantom comprises the entire ventricular system (lateral, third and fourth ventricles) which can be used to generate pressure inside the brain, and more closely approximate real cerebral anatomy. The ventricles are inflatable and can be filled with any liquid.

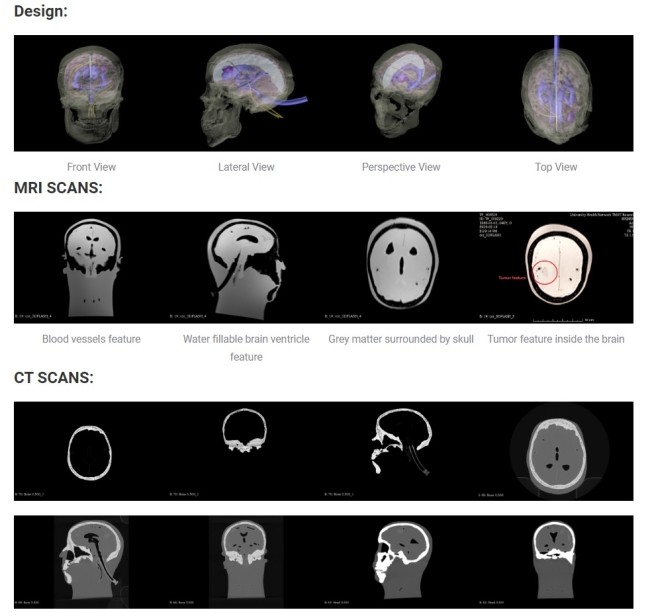

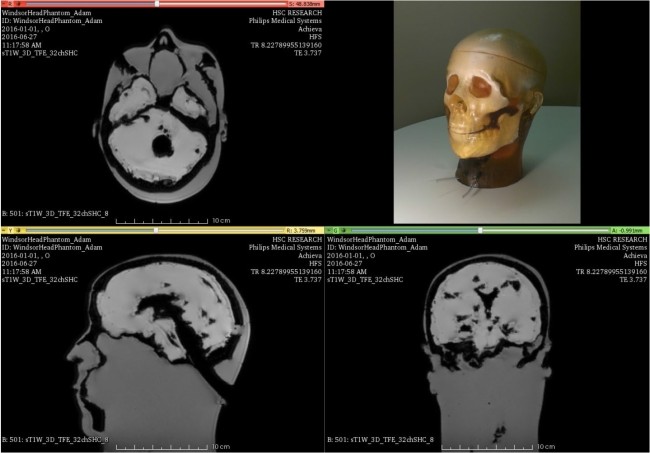

Adult Head (Standard) phantom is visible on Ultrasound, MR and CT scans. The brain parenchyma inside of the skull phantom is made of an ultra-soft polyurethane-based material that mimics soft tissue and its anatomical shape was created based on the optical scan of an average human brain model used in the anatomy class for medical students. The materials used to build the phantom are stable over time and they do not dry out.

The phantom consists of following components:
•Anatomically correct realistic skull
•Realistic brain phantom
•Water fillable brain ventricles
•Brain tumor
•Blood vessels with one bifurcation
•Falx cerebri
•Skin implemented to the skull
The phantom comprises the entire ventricular system (lateral, third and fourth ventricles) which can be used to generate pressure inside the brain, and more closely approximate real cerebral anatomy. The ventricles are inflatable and can be filled with any liquid.
Prior to imaging the phantom please fill the ventricles completely with water (or chosen contrast agent) using the tube on the back of the brain. After the ventricles are filled, plug the tube with a removable blue silicone plug.

Your Order Includes:
•Adult Head phantom (Standard)
•User Manual
•Hard carry case
Materials Used:
•Soft tissue and organs: Composition of urethane base soft resin
•Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Size & Weight:
•Weight: 8kg (Approx.)
•Dimensions: 33 x 23 x 30 cm

HU Values:
The following are the HU values of the tissue mimicking materials:
1) Soft tissue: average about -25
2) Trabecular bone: average about 800
3) Cortical bone: average about 1500

TECHNICAL PROPERTIES OF ADULT SKULL
Type of the tissues:	Sound velocity [m/s]	Density [g/cm³]	Hardness [Shore 00]	T2 [ms]	Speckles	Attenuation measured at 2.25 MHz [dB/cm]
Cortical bone material used to fabricate the skull bone phantom	3000 ± 30	2.31	N/A	N/A	N/A	6.4 ± 0.3
Trabecular bone material used to fabricate the trabecular layer within the bone phantom	2800 ± 50	2.03	N/A	N/A	N/A	21 ± 2

THERMAL PROPERTIES OF OUR BONE MIMICKING MATERIAL
Thermal Conductivity:	Volumetric Specific Heat Capacity:	Thermal Diffusivity:	Thermal Resistivity:	Specific Heat:	Speed of Sound:
0.776 W/ m K	1.040 MJ/ m^3 K	0.746 mm^2/ s	1.289 m K/ W	0.978 J/ g Deg Celsius	3070 m/s

TECHNICAL PROPERTIES OF BRAIN & SKIN MATERIAL
Type of the tissues:	Sound velocity [m/s]	Density [g/cm³]	Hardness [Shore 00]	T2 [ms]	Speckles	Attenuation measured at 2.25 MHz [dB/cm]
Brain tissue	1400 ± 10	0.99	20	70	YES	1.0 ± 0.2
Skin tissue	1400 ± 10	1.02	60	50	NO	1.7 ± 0.2
