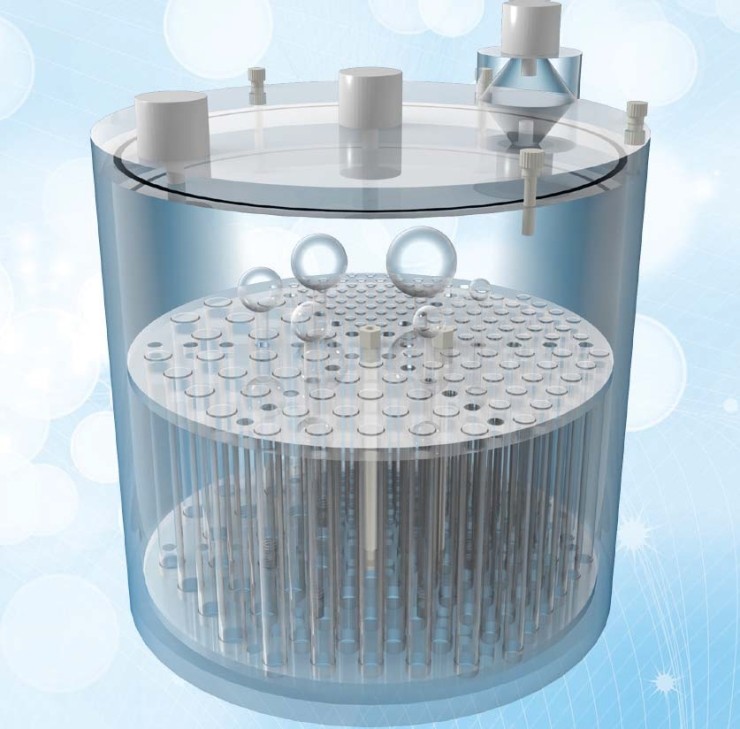

Phantom for SPECT and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters). It can be used to evaluate, for example: center-of-rotation error, non-uniformity artifacts, changes of radius-of-rotation on spatial resolution, reconstruction filters on spatial resolution, attenuation and scatter compensation.



Product features:
Complies with:
– NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
– AAPM Report No. 9 - Computer Aided Scintillation
Camera Acceptance Testing
– AAPM Report No. 22 - Rotating Scintillation Camera

SPECT Acceptance Testing and Quality Control
– ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
CE certified
the Manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical data (can be modified to customer specifications):

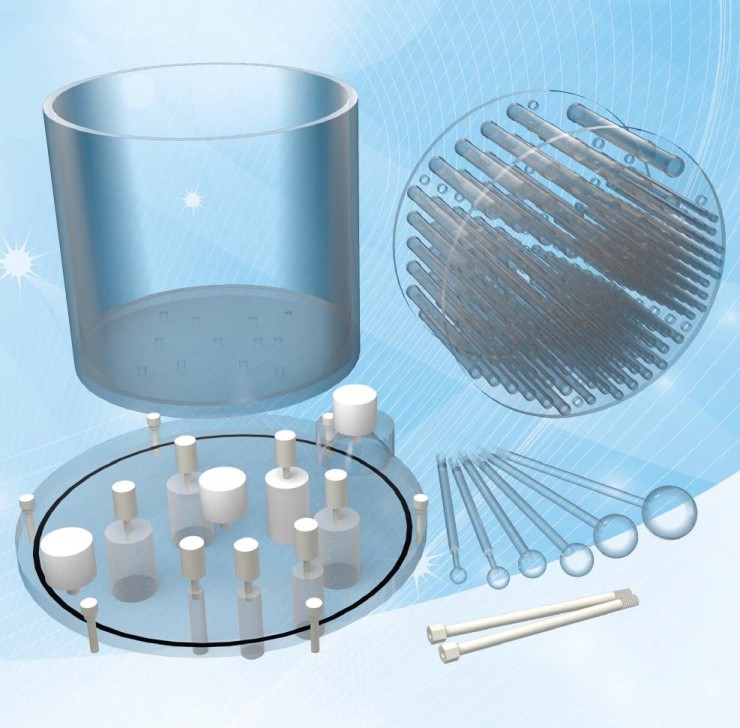

main cylinder:
– inside cylinder diameter: 206mm
– inside cylinder height: 186mm
– cylinder wall thickness: 7mm
cold rods insert:
– rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
– height of rods: 88mm
cold spheres:
– solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8mm
– height of the center of the spheres from the base plate: 127mm
optional PET Lid with cylindrical samples:
– refillable thin-walled cylinders, diameters: 8, 12, 16 and 25mm
– water filled cylinder diameter: 25mm
– air filled cylinder diameter: 25mm
– PTFE solid cylinder diameter: 25mm
– cylinder height: 38mm
heavy duty carrying case
