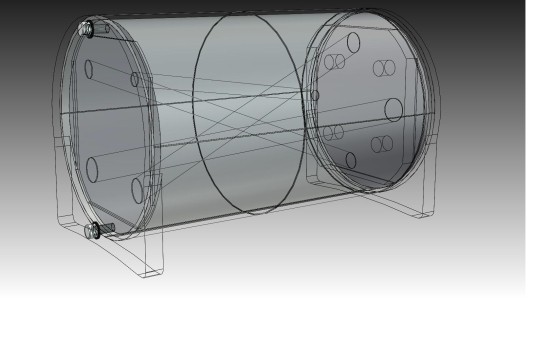

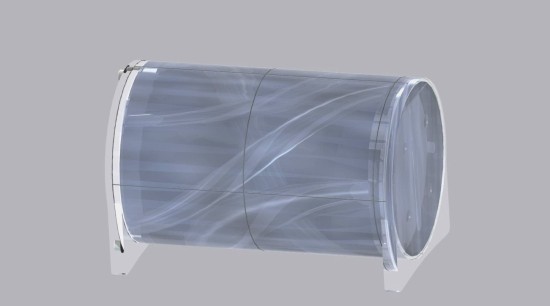

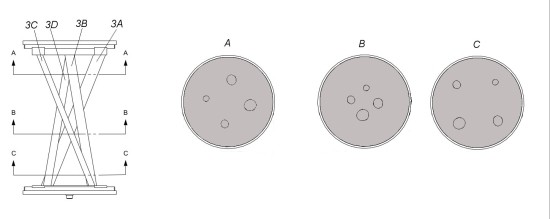

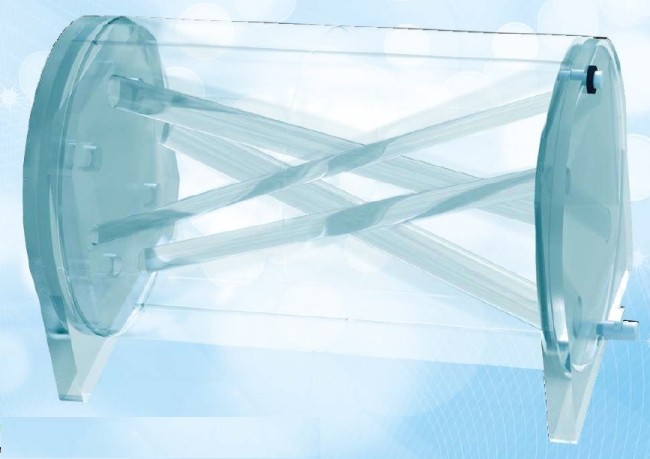

Phantom designed for a simple and cost effective verification of image alignment and distortion in hybrid scanning systems like PET/CT or SPECT/CT. It consists of a cylinder that can be filled with a variety of fluids. Several non-parallel rods of varying diameter and at certain angles in relation to phantom axes, run the entire length of the cylinder.

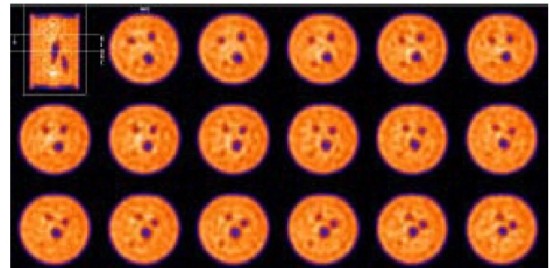

Images produced with different modalities allow for quick and simple identification of misalignments on fused studies.
Additionally phantom contains 2cm calibration module that is used by Pro-Control software to accurately identify phantom position in space and accurately calculate any mismatches.

Technical data (can be modified to customer specifications):
• PMMA cylinder dimensions: 250 x 260 x 410 mm
• 2cm thick calibration section with four through holes
• 4 PMMA rods: 30, 25, 20, 15 mm
• filling plugs and vent ports
• carrying handle

Product features:
• Complies with:
– AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
