A simple to use and economic tool to perform true spatial alignment and coincidence tests on IGRT systems.

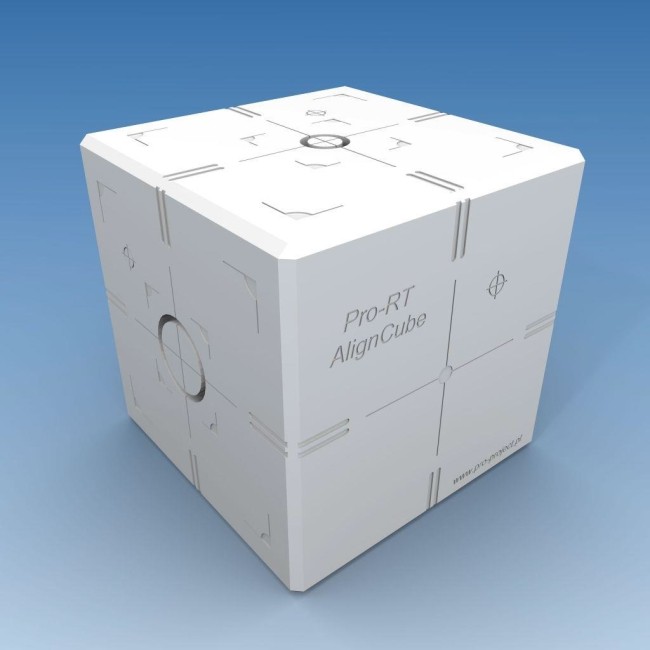

Pro-RT AlignCube contains engraved markings on the exterior and radiographic markers inside. The isocenters of both the OBI and the EPID can be checked for true spatial alignment and coincidence with that of the treatment beam.
The phantom ensures the accuracy of linacs’ image-guidance systems, including CBCT, x-ray volumetric imaging (XVI) and on-board imaging (OBI).

It can be used to test:
• 3D Cone Beam Registration
• kV and MV System Coincidence
• kV and MV Projection Images
• Laser and Light Field Coincidence
• Weekly Remote Table Adjustments

Technical data (can be modified to customer specifications):
• Dimensions: 120 x 120 x 120 mm
• Made of material similar to water
• Markings for 100 x 100mm and 40x40mm radiation field check
• One central fiducial ceramic sphere – 6.35mm diameter
• Two magnification-check fiducial ceramic spheres – 6.35mm diameter
• One offset ceramic sphere target – 6.35mm diameter
• Carrying case

Product features:
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
