마취통증과 또는 마취를 위한 약물주입 트레이닝 팬텀입니다.

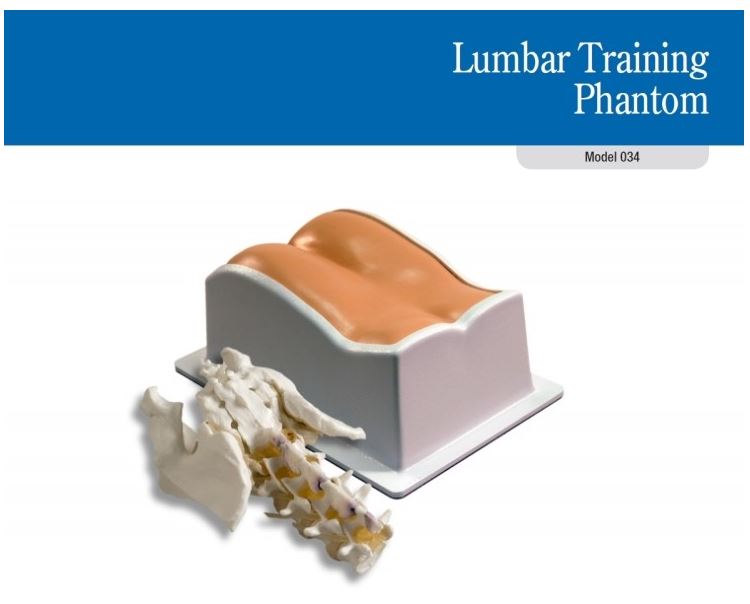

The CIRS Model 034 Lumbar Training Phantom provides a realistic puncture practice phantom for use with fluoroscopic image guidance.

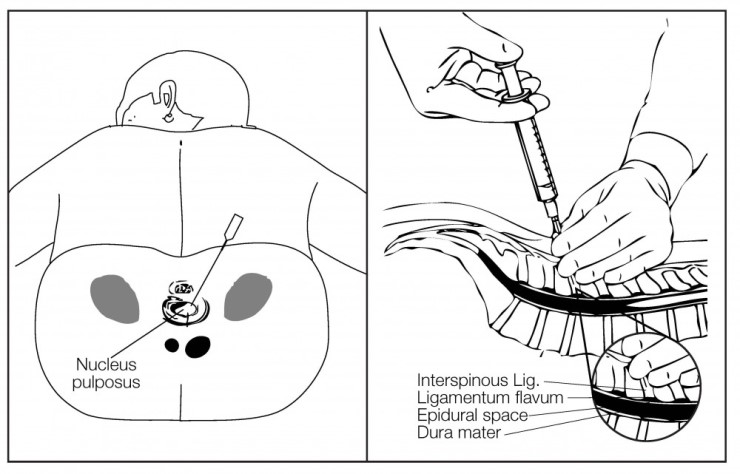

The realistic anatomy of the phantom facilitates hand-eye coordination. The Lumbar Training Phantom can be used to train many spinal procedures including sacroiliac joint injection, lumbar and caudal epidurals, diskography, block nerves, and facet blocks.
Ligaments, spinal cord, discs, skin and the simulated soft tissue have differing softness to allow trainees to “feel” their way through to the injection or target site.

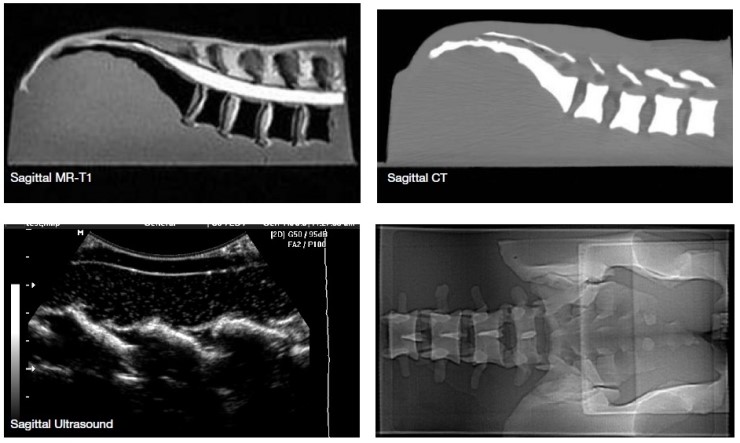

In addition to flouroscopy, the phantom can be imaged under CT, MR, and ultrasound. The Model 034 comes with a User Guide and six-month warranty

Features :
Realistic needle resistance of each tissue to allow trainee to "feel" the injection site
Self-sealing puncture membrane
Contains anthropomorphic ilium, sacroiliac jiont, sacrum plus L2-L5, superspinous ligament, interpinos ligament, ligament flavum, discs (anulus fibrosis and nucleus pulposis)
Allows training for six different spinal procedures







MODEL 034 INCLUDES
DIMENSIONS: 38 cm x 25 cm x 18 cm (15" x 10" x 7")
PHANTOM WEIGHT: 19 lbs. (7.1 kg)
MATERIALS: Epoxy Resin (bony spinal structures)
Urethane (soft spinal structures)
Zerdine® (soft tissue)

LUMBAR TRAINING PHANTOM Model 034 INCLUDES
1 Lumbar Training Phantom
1 User Guide

- 6-Month Warranty
