CIRS 그레이 스케일 초음파 팬텀은 크기, 깊이와 대조적으로 변화하는 대중의 해상도를 평가하는 하나의 간단한 도구입니다.

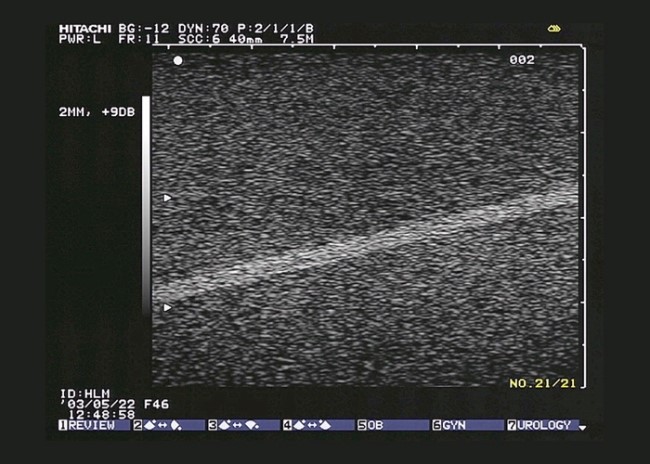

팬텀의 독특한 디자인은 1 ~ 12 cm에서 연속 깊이에서 그레이 스케일 해상도 전력을 신속하게 시각화 할 수 있습니다.

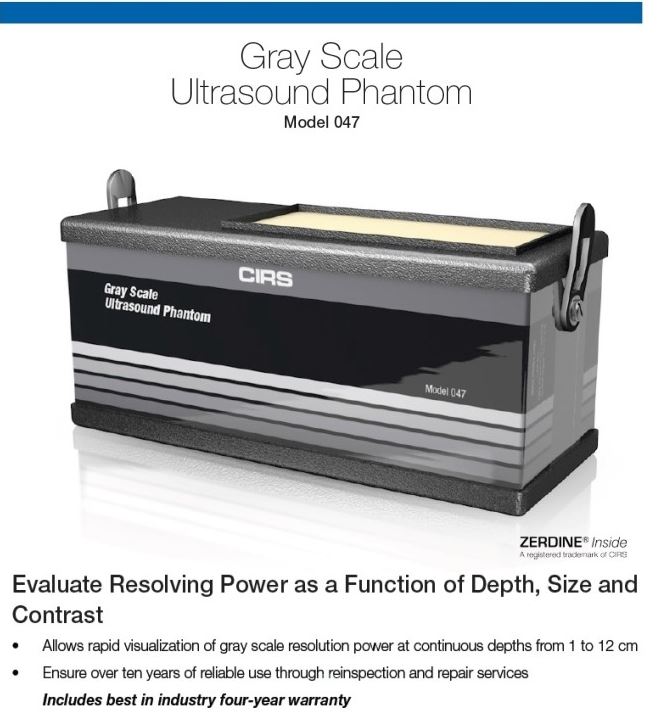

The CIRS Gray Scale Ultrasound Phantom is a single, simple tool to assess resolution of masses varying in size, depth and contrast. The phantom’s unique design allows for rapid visualization of gray scale resolution power at continuous depths from 1 to 12 cm.
​
Due to the controlled scatter characteristics of the targets, the Model 047 may be used to evaluate gray scale sensitivity on all diagnostic ultrasound machines with a wide range of transducer frequencies. This phantom is an ideal training tool for learning optimum system setup and evaluating system performance.
​

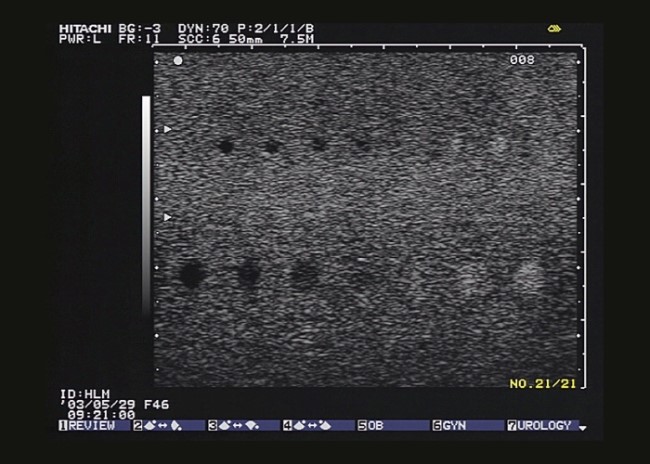

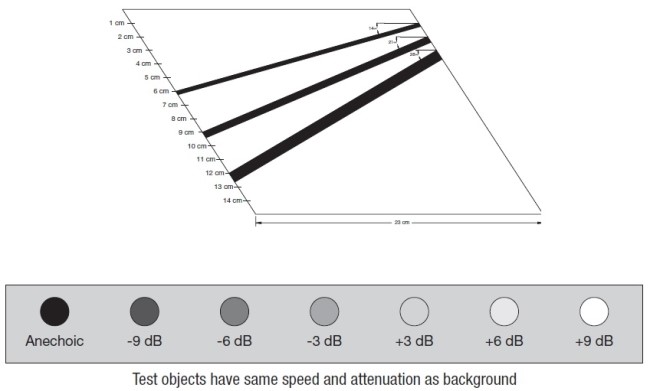

Masses may be viewed with either a circular or elliptical cross-section. The mass diameters were selected so the volume imaged would double as the diameter increased. The gray-scale levels were selected to achieve a doubling in signal intensity as you move from mass to mass. The anechoic masses comply with the ACR accreditation program.

The phantom is constructed of Zerdine®(1), a patented, tissue-mimicking material and is housed in a rugged ABS plastic for increased durability.

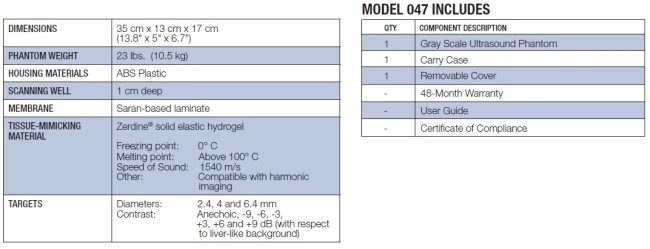

Phantom includes foam-lined carry case, certificate of compliance, user guide and 48-month warranty
