EXCEED ACR ACCREDIDATION REQUIREMENTS

범용으로 사용되는 초음파 QC팬텀입니다.



견고한 케이스와 함께 제공됩니다.



여러 종류의 Cap이 제공되기 때문에 Probe의 용도에 맞게 사용할 수 있습니다.



Testing Parameters
• Dead Zone
• Horizontal Distance Accuracy
• Vertical Distance Accuracy
• Depth of Penetration
• Image Uniformity
• Axial Resolution

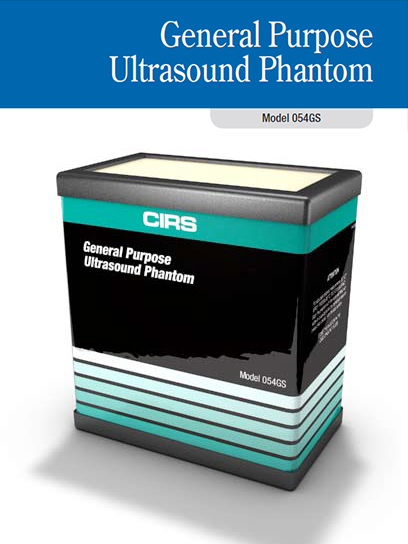

The CIRS Model 054GS General Purpose Ultrasound Phantom contains gray scale targets and improved sensitivity targets that exceed the phantom requirements outlined in the ACR accreditation program.

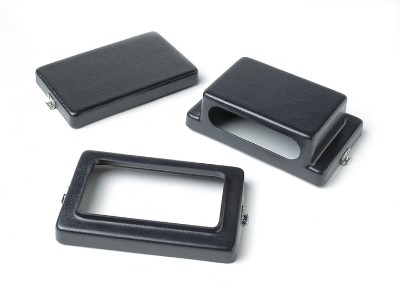

The Model 054GS is constructed from a patented solid elastic material, Zerdine® (1). Zerdine is a durable, reliable and accurate tissue- mimicking material. A removable water well and endocavity cover extends the use of the phantom by allowing evaluation of all transducer configurations, including linear, curvilinear and intercavity.

CIRS ultrasound QA phantoms all come standard with a robust housing, foam-lined carry case, 48-month warranty, and user guide.

CONTAINER
Dimensions: 17.8 x 12.7 x 20.3 cm
Weight: 11 lbs
Material: ABS Housing

BACKGROUND GEL
Zerdine, solid elastic water-based
polymer
Freezing Point: 0º C
Melting Point: Above 100º C

ATTENUATION COEFFICIENT
0.5 dB/cm-MHz
0.7 dB/cm-MHz available upon request

SPEED OF SOUND
1540 m/s

SCANNING WELL
15 x 10 x 1 cm deep

SCANNING MEMBRANE
Dimensions: 6 x 11 x 0.5 cm
Material: Zerdine, high scatter

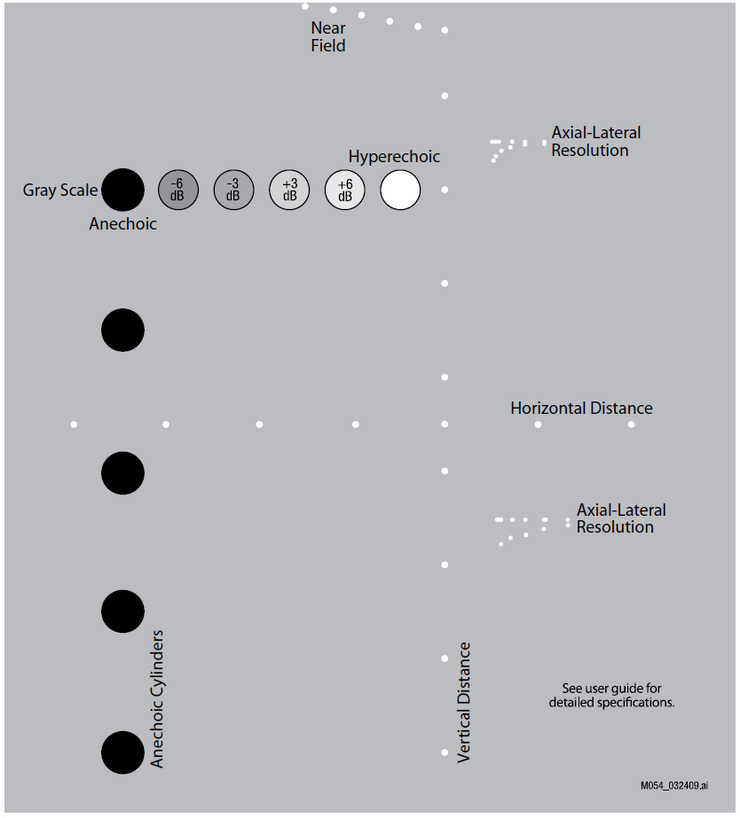

VERTICAL PLANE TARGETS
Number of Groups: 1
Number of Targets Per Group: 10
Depth Range: 18 cm
Spacing: 2 cm
Material: 0.1 mm Nylon monofilament

HORIZONTAL PLANE TARGETS
Number of Groups: 1
Number of Targets Per Group: 7
Depth Range: 9 cm
Spacing: 2 cm
Material: 0.1 mm Nylon monofilament

NEAR FIELD TARGETS
Number of Groups: 1
Number of Targets Per Group: 6
Depth of Targets: 1, 2, 3, 4, 5 & 6 mm
Material: 0.1 mm Nylon wire

AXIAL-LATERAL RESOLUTION TARGETS
Number of Groups: 2
Number of Targets Per Group: 12
Depth: 3 & 11 cm
3 cm Spacing: 0.25, 0.5, 1, 2, 3, & 4 mm
11 cm Spacing: 1, 2, 3, 4, & 5 mm
Material: 0.8 mm Nylon wire

ANECHOIC CYLINDERS
Number of Targets: 5
Diameter of Target: 8 mm
Contrast: Anechoic

GRAY-SCALE TARGETS
Number of Targets: 6
Diameter of Target: 8 mm
Depth of Target: 4 cm
Contrast: Anechoic, -6 dB, -3 dB,
+3 dB, +6 dB hyperechoic

MODEL 054GS INCLUDES
General Purpose Ultrasound Phantom
Carry Case
Removable Scanning Wells
User Guide
48-month Warranty
