Test Equipment(방사선측정기)
제목 | Electrometer Dose1 |

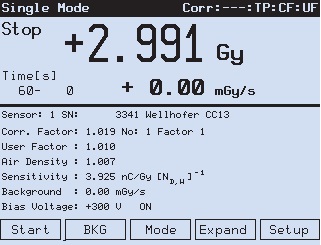

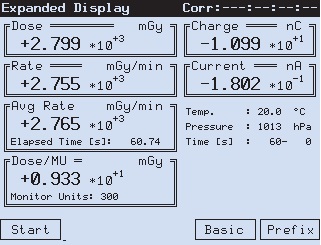

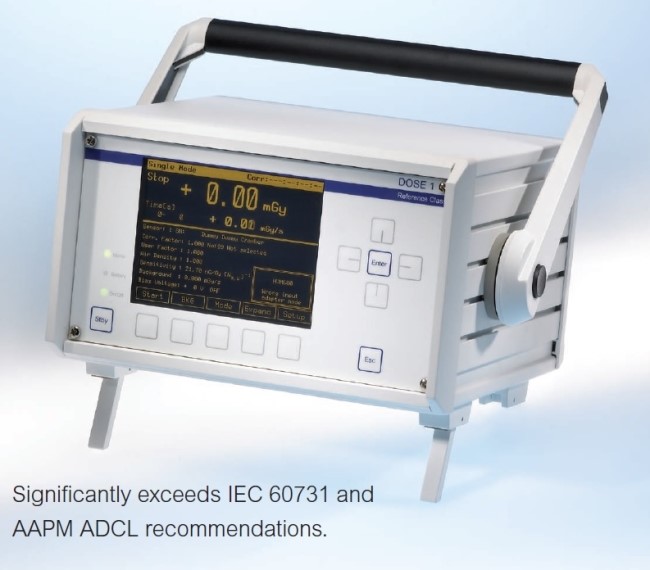

독일 IBA사의 일렉트로미터 Dose1 입니다. 다양한 챔버와 IBAt사의 워터팬텀과 호환되어 사용할 수 있습니다. IEC 60731규격과 AAPM ADCL의 요구사항을 만족할 수 있는 제품입니다. The efficient solution for Absolute Dosimetry The DOSE 1 is a portable, single channel, high-precision reference class electrometer that significantly exceeds the recommendations of the IEC 60731 and the AAPM ADCL. It combines superior accuracy with an excellent resolution in a wide dynamic range. The electrometer can be used with ionization chambers, semiconductor detectors and diamond probes for measurements of absorbed dose. In combination with radioactive check sources the response stability of the ionization chambers is verified and the cross calibration performed. The Hardware Large and high contrast graphic electro luminescent display with a wide viewing angle (160°) for complete and comprehensive display of all measured values, chamber and correction factors Ergonomic design of the operator interface, intuitive easy to use soft keys, pop-up menus Dose, dose rate, average dose rate, charge, current and dose per monitor unit measurements are displayed simultaneously For verification of instrument, connecting cable and proper sensor operation, an electrical check source as well as leakage and bias voltage testing are included as standard built-in features Possibility to store up to 40 different sensors, same number of correction factors and up to 10 radioactive check sources The Software Separate measurement or performance of a whole queue of batches* Automatic starting and stopping function when running a batch measurement Fully automated calculation of average and normalization to a reference value (e.g. automated output factor determination) Visibility of old results due to saving of measurements in a database or fi le Results are collected and sent from the electrometer to the PC continuously Results can be presented on the screen as tables or graphics The communication between the DOSE 1 and the PC is realized via RS-232 serial interface Result of individual measurements as well as batch summaries can be adapted and saved in text and XML formats for data import, e.g. into Excel for further analysis The administration software allows the management of detectors, correction factors and radioactive check sources with PC Technical specifications |
|
카테고리 | 일렉트로미터 |
