IBA Dosimetry의 도시메타 시리즈입니다.
Magicmax의 도시메터 기능만 탑재한 제품부터 Dosimax plus 시리즈 까지 다양한 제품으로 구성되어 있습니다.
선량계로서의 기능만 단독으로사용할 수 있는 Dosimeter Dosimax plus A와 Dosimeter Dosimax plus I입니다.
Magicmax와는 다르게 노트북에 연결할 필요 없이 단독으로 사용할 수 있습니다.
선량관리에 가본적으로사용할 수 있는 도시메터입니다.
Magicmax Universal처럼 디텍터를 RQA, RQM, DE2DX등으로 어떻게 조합하느냐에 따라 일반촬영장치, 유방촬영장치, CT 등 다양하게 활용할 수 있습니다.

---

Dosimeter Dosimax plus A (basic unit) VD0201747, Detector RQA VD0202850
PTP-approved single-channel dosimeter according to IEC 61674, designed for acceptance tests and for quality checks at radiographic, fluoroscopic,dental and mammographic X-ray units.

일반촬영, 투시, 혈관조영징치, 치과용 지난용 방사선장치에 사용하는 디텍터

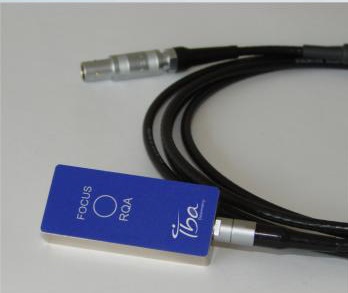

In Rad/Flu for use with solid state detector RQA.
Measurement Parameters with Detector RQA:
➤ Dose: 200 nGy - 9999 mGy
➤ Dose rate: 80 nGy/s - 70 mGy/s (50 - 150 kV)
➤ Time: 1 ms - 19999 s



일반촬영, 투시, 혈관조영징치, 치과용 지난용 방사선장치에 사용하는 디텍터

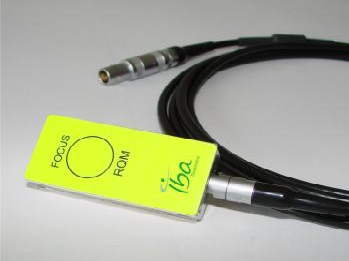

In Mammo for use with solid state detector RQM.
Measurement Parameters with Detector RQM:
➤ Dose: 500 nGy - 9999 mGy
➤ Dose rate: 1.5 μGy/s - 300 mGy/s
➤ Time: 1 ms - 19999 s



Options / Additional Accessories:
Official Verification CF1E1003 Of dosimeter DOSIMAX plus A by a German office of legal metrology.
Carrying Case VD0225720
For dosimeter DOSIMAX plus series;
offers space for 1 DOSIMAX plus and 2 solid state detectors (not DEDX/DE2DX).





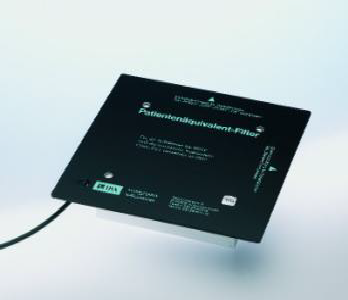

Dosimeter DOSIMAX plus Duo incl. Sandwich Detector DE2DX VD0201460
Dual-channel dosimeter especially for constancy tests at radiographic and fluoroscopic X-ray units with sandwich detector DE2DX. Entrance and exit dose / dose rate measurement with one single exposure.
Measurement Parameters:
➤ Dose: 2 μGy - 9.999 Gy
➤ Dose rate (entrance dose): 20 μGy/s - 1 Gy/s
➤ Dose rate (exit dose): 2 μGy/s - 1 Gy/s
➤ Time: 1 ms - 20 ms
➤ kV-range combined with DE2DX: 50 - 150 kV

---

Dosimeter DOSIMAX plus I (basic unit) VD0201748
According to IEC 61674; single-channel dosimeter for constancy tests at radiographic and fluoroscopic X-ray units.
In Rad/Flu for use with the appropriate solid state detector (RQA or DEDX).
Measurement Parameters with Detector RQA:
➤ Dose: 200 nGy - 9999 mGy
➤ Dose rate: 80 nGy/s - 70 mGy/s (50 - 150 kV)
➤ Time: 1 ms - 19999 s
Measurement Parameters with Detector DEDX:
➤ Dose: 2 μGy - 9999 mGy
➤ Dose rate: 20 μGy/s - 1 Gy/s
➤ Time: 1 ms - 19999 s
Option / Additional Accessory:
Carrying Case VD0225720
For dosimeter DOSIMAX plus series;
offers space for 1 DOSIMAX plus and
2 solid state detectors (not DEDX/DE2DX).
​
Short description of the DOSIMAX plus A, DOSIMAX plus I
The DOSIMAX plus A dosimeter is a fully automatic precision instrument for measuring dose, dose rate and exposure time simultaneously. Semiconductor detectors are used which offer, in comparison to ionization chambers, a number of wellknown advantages e.g. they are unaffected by air pressure and temperature. The ionization current of the semiconductor detector is measured, converted into the dosimetrical unit Gray (Gy) and then shown in the display.

The DOSIMAX plus A, I has the following features:
     · Automatic sensitivity changeover between radiography and fluoroscopy
     · Automatic reset
     · Easy parameter selection by using the corresponding key
     · Direct readout of measured values
     · Auto PowerOff after a period of 10 minutes when no user interaction or measuring takes place.

Intended Use
The DOSIMAX plus A, Dosimax plus I is intended for measuring in the being of use beam in the context of the acceptance test according to radiograph ordinance to radiograph diagnostics facilities.

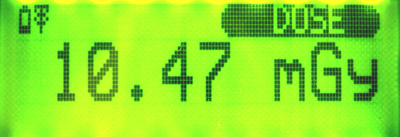

Dose 선량

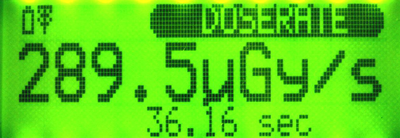

Dose rate 선량율

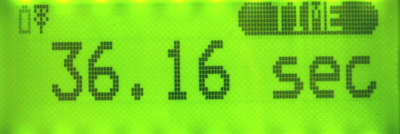

Exposure Time

Technical Data

Basic instrument

Wave form:                              1pulse up to middle frequency / high frequency generators
Exposure time:                        1 ms to 19999 s
Reset:                                    automatically
Switching Off:                         automatically after 10 minutes of inactivity or by use of the Off key
Interface:                                RS 232
Power supply:                        4 Mignon batteries (AA) 1,5V each or alkaline (LR6)
Working time:                         15 hours (alkaline batteries)
Display:                                 LCDDOTMatrix, 5 Digits and units
Weight:                                  280 g / 0.44 lb (basic equipment without batteries)
                                            290 g / 0.64 lb (basic equipment with batteries)
Size (H x W x L):
Dosimeter:                             35 x 90 x 145 mm, (1.4’ x 3.5’ x 5.8’)
Operating temperature:            15 to 35 °C (59 to 95 °F), Storage: 0 bis + 60 °C (32 to140 ° F)
Relative air humidity:              < 80 %

Detector RQA
Type of detector:                       Silicon photodiode (PIN)
Measurement principle:             Ionization current in the semiconductor detector
Detector patch cord:                  Triaxial plug type Lemosa, size 0
Nominal measuring range for      50150 kV tube voltage in the unattenuated
diagnostic beam qualities:          useful beam (RQR 3 – RQR 10, acc. DIN EN61267)
                                               50150 kV tube voltage in the attenuated useful beam (RQA 3 RQA 10, acc. DIN EN 61267)
Calibration factor:                      0.0188 mGy/nC (70 kV, 2.5 mm Al)
                                               0.0174 mGy/nC (70 kV, 25 mm Al)
Response:                                53.2 nC/mGy (70 kV, 2.5 mm Al)
                                               57.5 nC/mGy (70 kV, 25 mm Al)
Dose measuring range:              200 nGy bis 9999 mGy
for the Dose rate range:              80 nGy/s bis 70 mGy/s
Measurement uncertainty:          < 5 % (by a minimal dose rate of 80 nGy/s)
Weight:                                     85 g (0.18 lb)
Size (L x W x H):                      45 x 20 x 8 mm (1.7’ x 0.78’ x 0.31’)
Maximum cable length:             10 m (394’)
Calibration reference point:        70 kV, 2.5 mm Al, 1 m distance (RQR5)
                                              70 kV, 25 mm Al, 1 m distance (RQA5)


Quality Assurance Tests
Even if a self check of the DOSIMAX plus A dosimeter detector combination is done after every switchon,
QA tests should be carried out at regular intervals in order to verify the general functionality, safety and general condition of the dosimeter, the detector(s) and all accessories. Please observe the environmental reference conditions stated below.
Suggested time table for QA tests

Type of test                                        Frequency                         Tolerance
----------------------------------------------------------------------------------------------
Calibration                                        Every 2 years                         +/- 5%
Dosimeter is free of damage               Before every
together with exposed cables /           messuring
detector(s)                                        session
----------------------------------------------------------------------------------------------
